Australian Monitor ES SERIES MIX AMP 1 X 120 WATT ES120 AUSTRALIAN MONITOR

Australian Monitor ES SERIES MIX AMP 1 X 120 WATT ES120 AUSTRALIAN MONITOR

Regular price $699
Regular price Sale price $699
Sold out

Stock Levels are Not Indicated Online, Please Contact Us to Confirm Avaliability

View full details

Australian Monitor ES SERIES MIX AMP 1 X 120 WATT ES120 AUSTRALIAN MONITOR

Australian Monitor ES SERIES MIX AMP 1 X 120 WATT ES120 AUSTRALIAN MONITOR

Product Description

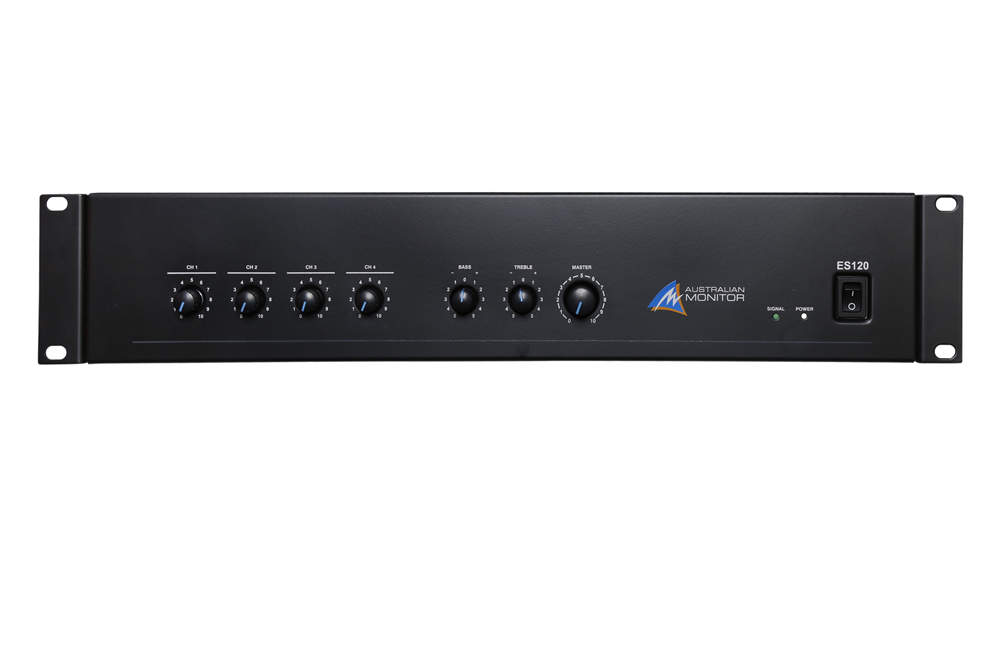

ES120

120W Mixer Amplifier

Cost Effective, Basic Features

The Australian Monitor ES Series is the latest evolution of our Essentials series of Mixer Amplifiers, now featuring 2 channels of priority VOX muting, integrated tone generator (120/250 models) and a modern look and finish.

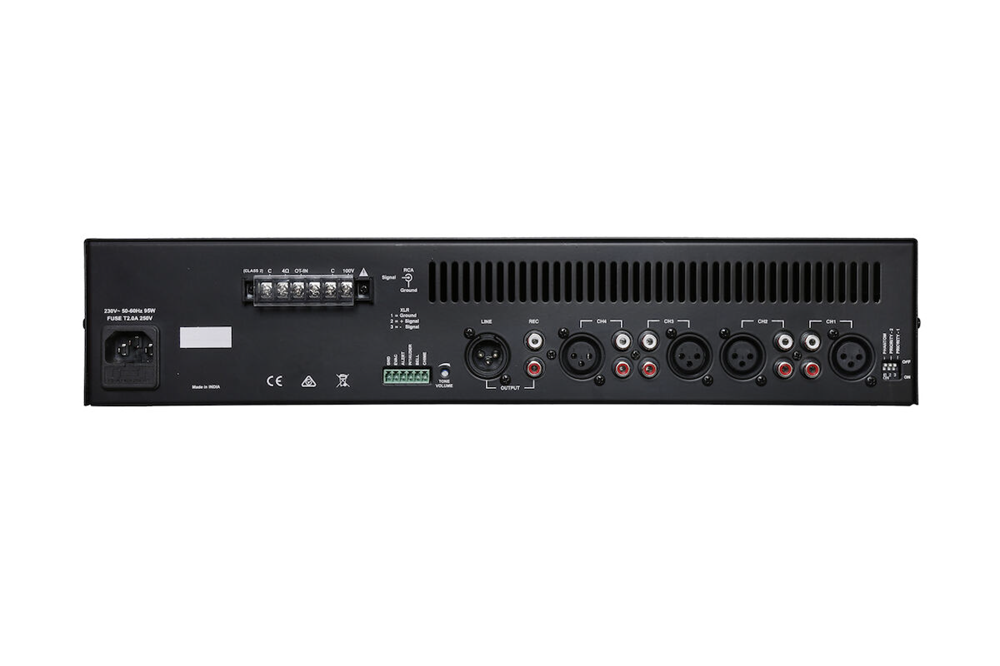

The ES mixer amplifiers maintain the core features you expect including four XLR mic/dual RCA line inputs, record and line outputs, low impedance or constant voltage outputs and 12V phantom power.

The ES series offers the latest features to meet projects requiring the most cost-effective solutions.

  • 120W mixer amplifier
  • 4 XLR microphone/dual RCA line inputs
  • 100 volt or 4 ohm output
  • Input 1,2 vox muting priority
  • Integrated tone generator. Evac/Alert/Interuder/Bell/Chime tones
  • 12VDC phantom power
  • 2 RU rack mountable chassis

SPECIFICATIONS

  • Output Power per Channel: 120W
  • Frequency Response: 55Hz - 20kHz
  • Output Mode: 4 Ohm-100V
  • THD+N: < 0.2%
  • Input Channels: 4 MIC or Line
  • Signal to Noise Ratio: > 85dB
  • Input Voltage: 230Vac 50Hz
  • Input Sensitivity: MIC: 1.2mV - Line: 160mV
  • Mounting: 2RU
  • Cooling: Fan-assisted
  • Warranty: 5 years
  • Product Dimensions:
    • (W x D x H) 483mm x 305mm x 88mm Shipping Dimensions
    • (W x D x H) 541mm x 396mm x 156mm
  • Net Weight: 7.1 Kg
  • Shipping Weight: 9.4 Kg
