Product Description

ES2120P

2 x 120W Power Amplifier
Cost Effective, Basic Features

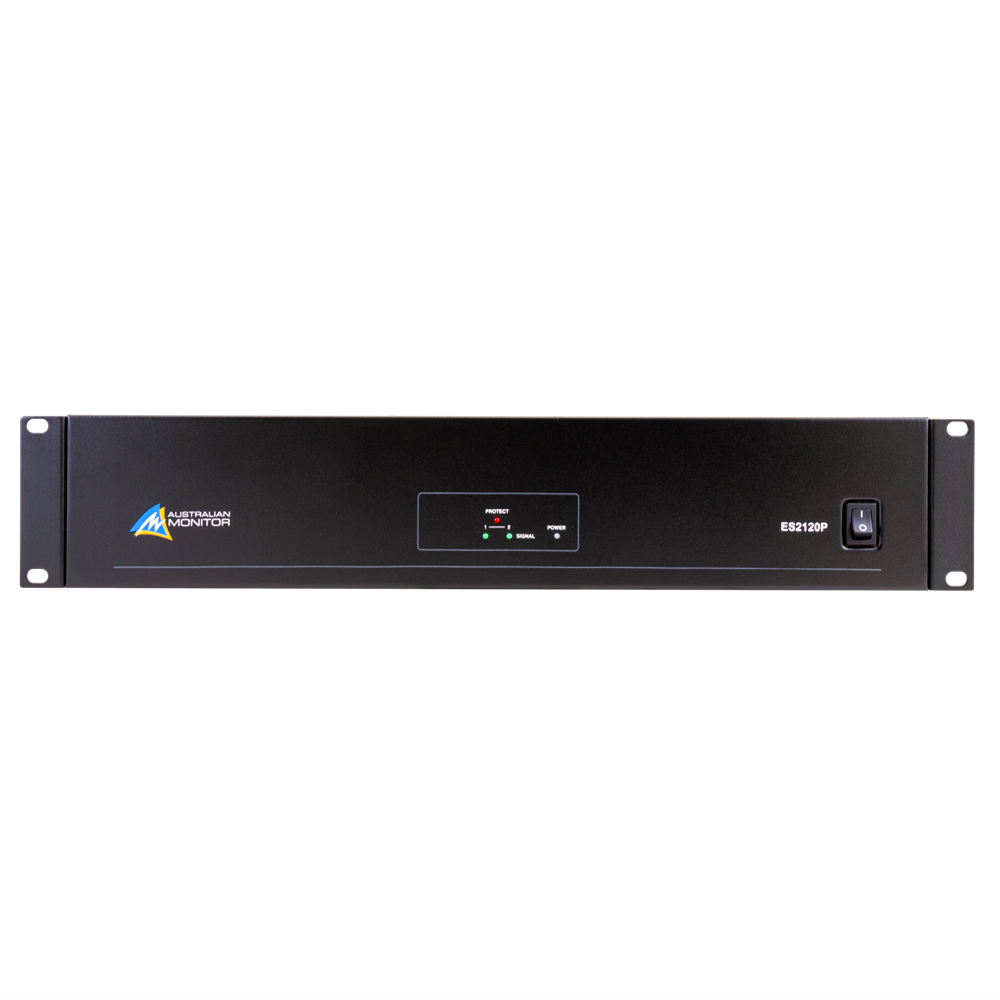

The ES2120P power amplifier delivers 120 watts per channel at 100 volt or 4 ohm in a 2 RU package.

The ES series booster amplifiers give the audio contractor a reliable, low cost booster amplifier for applications that are price sensitive but still require high quality commercial sound reinforcement.

FEATURES

• 2 x 120W amplifier
• 4 ohm and 100 volt output options
• Rear panel volume control

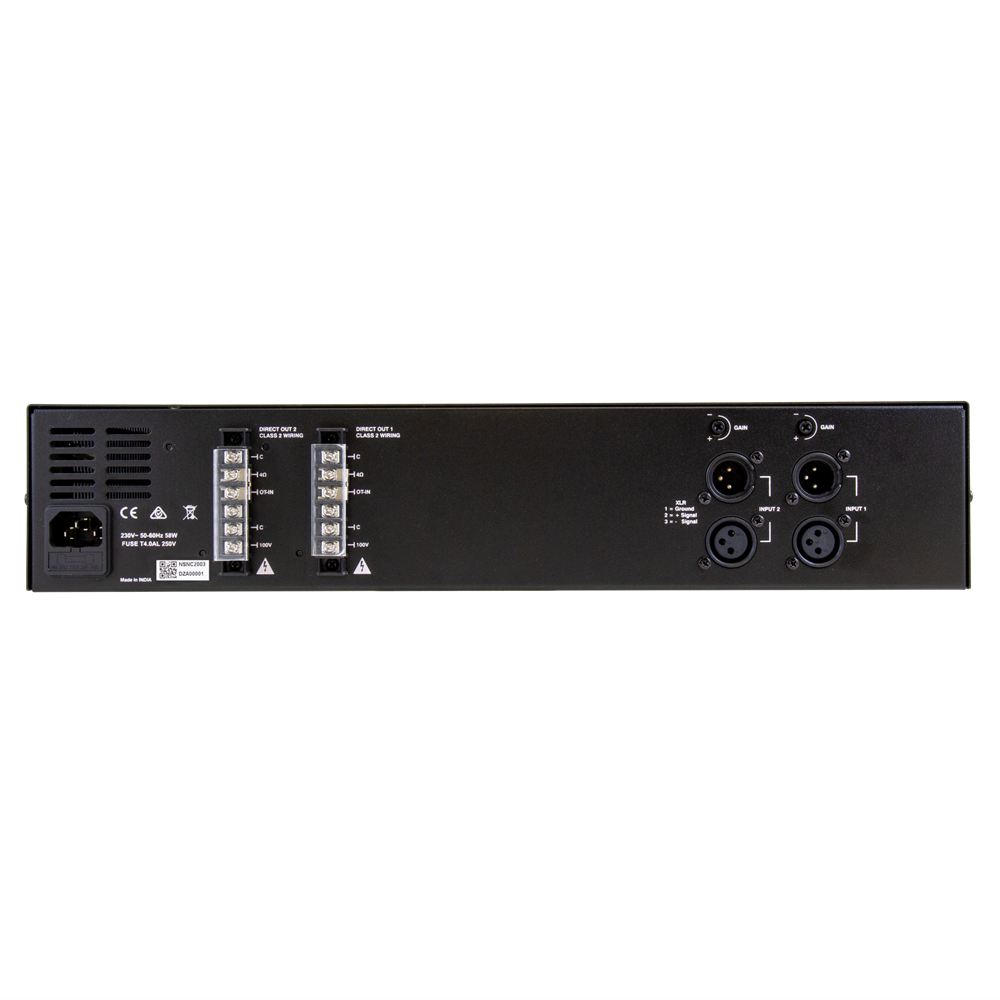

• Balanced input and thru out
• Fan cooled
• 2 RU

SPECIFICATIONS

• Output Power per Channel:    120W
• Frequency Response:    90Hz - 30kHz
• Output Channels:    2
• THD+N:    < 0.01% (-3dB)
• Output Mode:    4 Ohm-100V
• Signal to Noise Ratio:    > 90dB
• Input Voltage:    230Vac 50-60Hz
• Input Sensitivity:    150mVrms
• Mounting:    2RU
• Cooling:    Fan-assisted
• Warranty:    5 years
• Product Dimensions: (W x D x H)    483mm x 271mm x 88mm
• Shipping Dimensions: (W x D x H)    545mm x 460mm x 160mm
• Net Weight:    7.45 Kg
• Shipping Weight:    7.68 Kg
