Product description

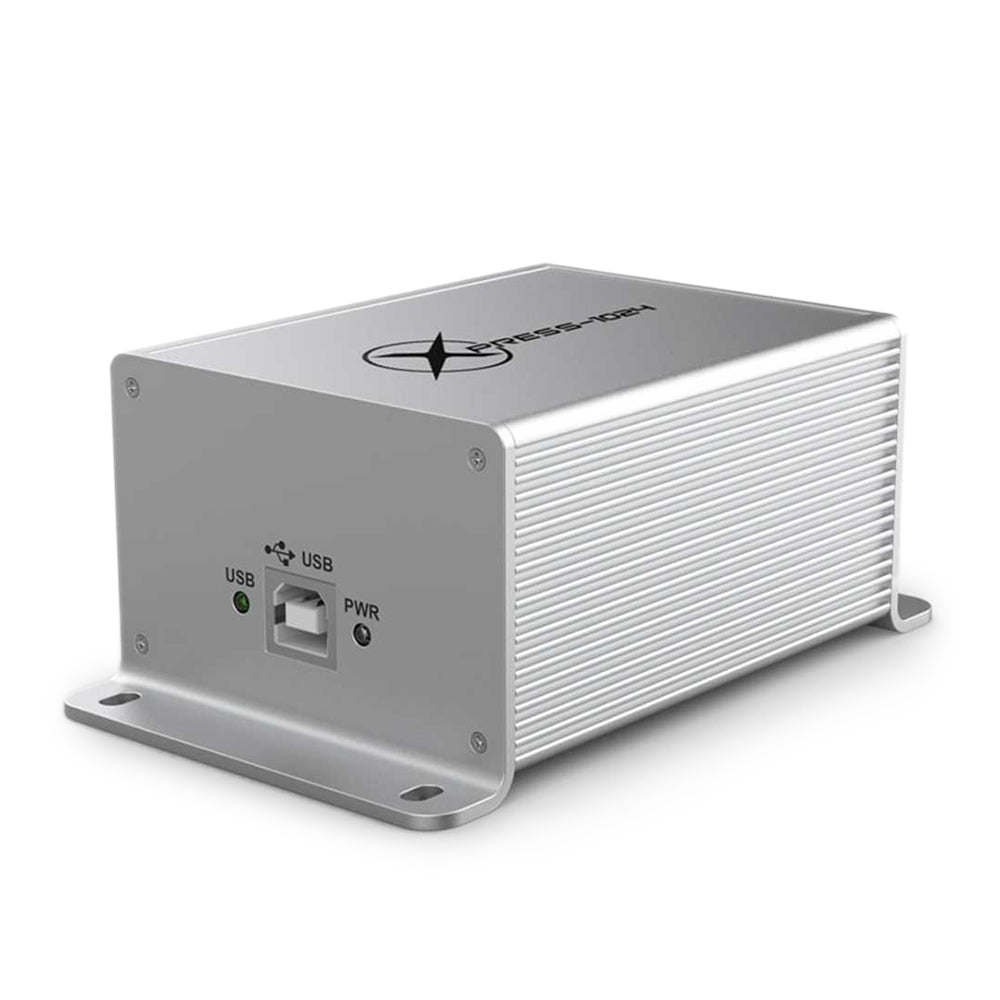

Chauvet DJ Xpress 1024 DMX USB Interface with Software

The Chauvet DJ Xpress 1024 is a powerful USB DMX interface that lets you control your lighting fixture with the ShowXpress lighting software. It is compatible with both Windows® and Mac OS X systems with a live control app. This means that you can use it with a smartphone device.

The interface provides two physical DMX universe outputs (1024 channels), and one additional ArtNet universe (3 universes total). You can also add extra universes easily by connecting an additional Xpress 512/1024 interface. The Show Xpress software can support up to six universes. The Xpress 1024 is built into a compact aluminium housing and is completely BUS powered. This means that you don’t require an additional power supply. The Xpress 1024 is a lightweight USB DMX interface that includes a USB cable for your convenience.

You can download the latest version of Show Xpress using the following links below;

Windows

MAC OS

Interface with Show Xpress

The Xpress 1024 includes a USB IN with both USB and POWER status indicators. The opposing side features a 2x 3-pin XLR DMX OUT offering 1024 + 512 via Art-Net and a DMX Refresh Rate of 40Hz. Both DMX outputs are electrically and optically isolated. With the latest version of Show Xpress V9+, the Xpress 1024 interface is hot-swappable and will automatically reconnect in seconds. Additionally, you can save one scene into the hardware for limited ‘stand-alone’ functionality. As a result, the Xpress 1024 is perfect for background lighting at any function, event or gala.

Features:

• Self-contained, aluminium DMX interface for ShowXpress™ software
• Controls two DMX universes and unlocks an additional ArtNet universe (3 universes total)
• Easily store and playback 1 show without a computer
• Compatible with Windows® and Mac OS X systems
• Connect multiple interfaces to control additional universes
• Hot-swappable and automatically re-connects within seconds
• Both outputs are electrically and optically isolated

Specs:

DMX Channels: 1024 + 512 via ArtNet

DMX Connectors: 3-pin XLR

Input Voltage: 5 V USB

Weight: 0.2 kg

Dimensions: 110 x 66 x 45 mm

Approvals: CE

DMX Refresh Rate: 40 Hz
