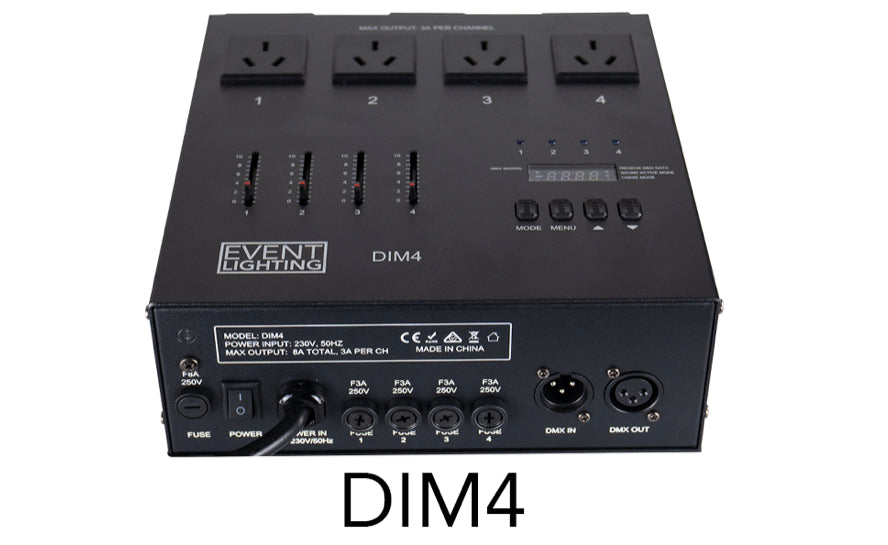

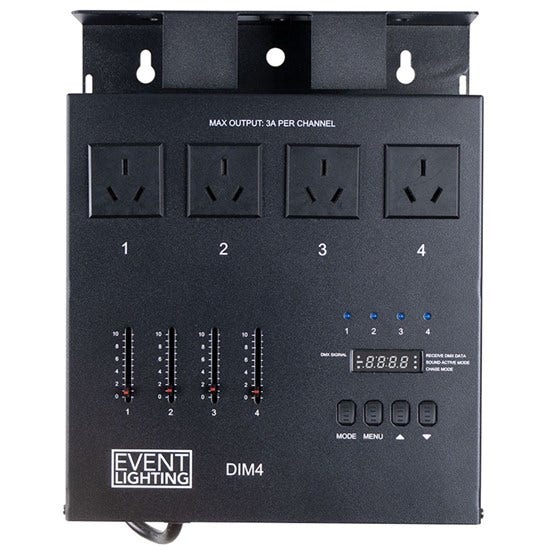

Event Dim4 - Dimmer 4 with faders

4-Channel Dimmer

• With integrated faders for control on the device
• Single channel fader and master dimmer
• 4 Protected contact sockets to connect the headlights
• Display with 4 buttons for configuration
• Independent DMX addressing for each channel
• Automatic programs
• Music Control and Master/Slave
• Includes mains cable and mounting bracket

Technical specifications:

• Load per channel: Max. 5 A
• Total load: Max. 10 A
• Output power: Max. 1000 W at 100 V / 2000 W at 240 V
• Control: DMX (4 channels)
• DMX input and output: XLR 3-pin and 5-pin
• Power input: Power Twist
• Black metal housing
• Protection class: IP20
• Power supply: 100 - 240 V
• Dimensions: 265 x 220 x 84 mm
• Weight: 2.9 kg
