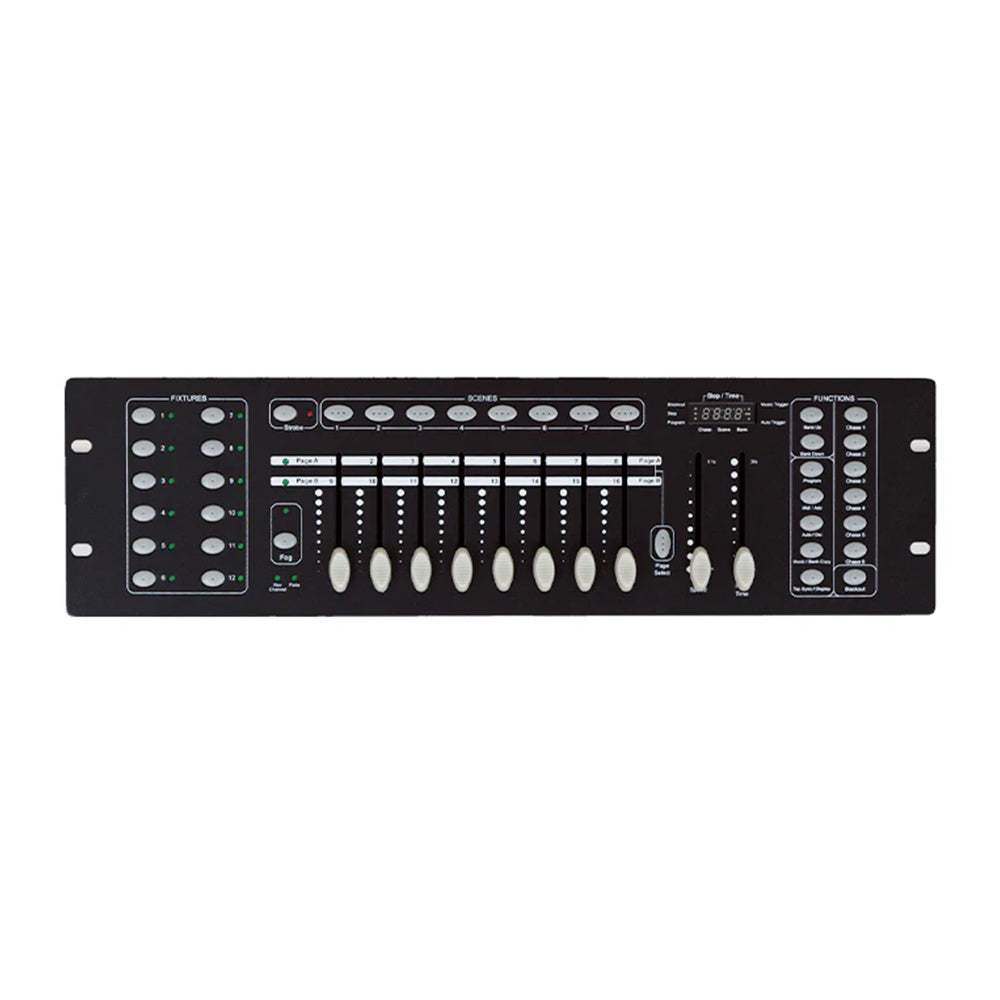

Event Lighting KONTROL192 - 192 channels DMX controller

This DMX lighting desk provides independent control of 12 fixtures with up to 16 channels, and access to 240 programmable scenes. With dedicated fade time and speed sliders and separate fog and strobe control, you can pretty much run a whole lighting show. The KONTROL192 has 6 built in chase programs which can be programmed to step through scenes or operate with synchronized music activation through the internal microphone. A compact and efficient DMX controller for small to medium productions and installations, supplied with rack ears for mounting in a 3RU format.

• DMX512 protocol with 192channels
• Independent control of 12 fixtures, 16ch each
• Sound-activated: synchronized music activation through internal microphone
• Scenes: 240 programmable scenes (30 banks of 8 scenes)
• Chases: 6 chased of up to 240 scenes per chase
• Dedicated fade time slider
• Dedicated speed slider
• DMX polarity selector
• Fog and strobe control
• Power: 12V DC 500mA
• MIDI Signal: 5 din pin standard interface
• 3RU compatible
• Dimensions: 482 x 132 x 73 mm
• Weight: 2.6kg

User Manual Download
