Product Description

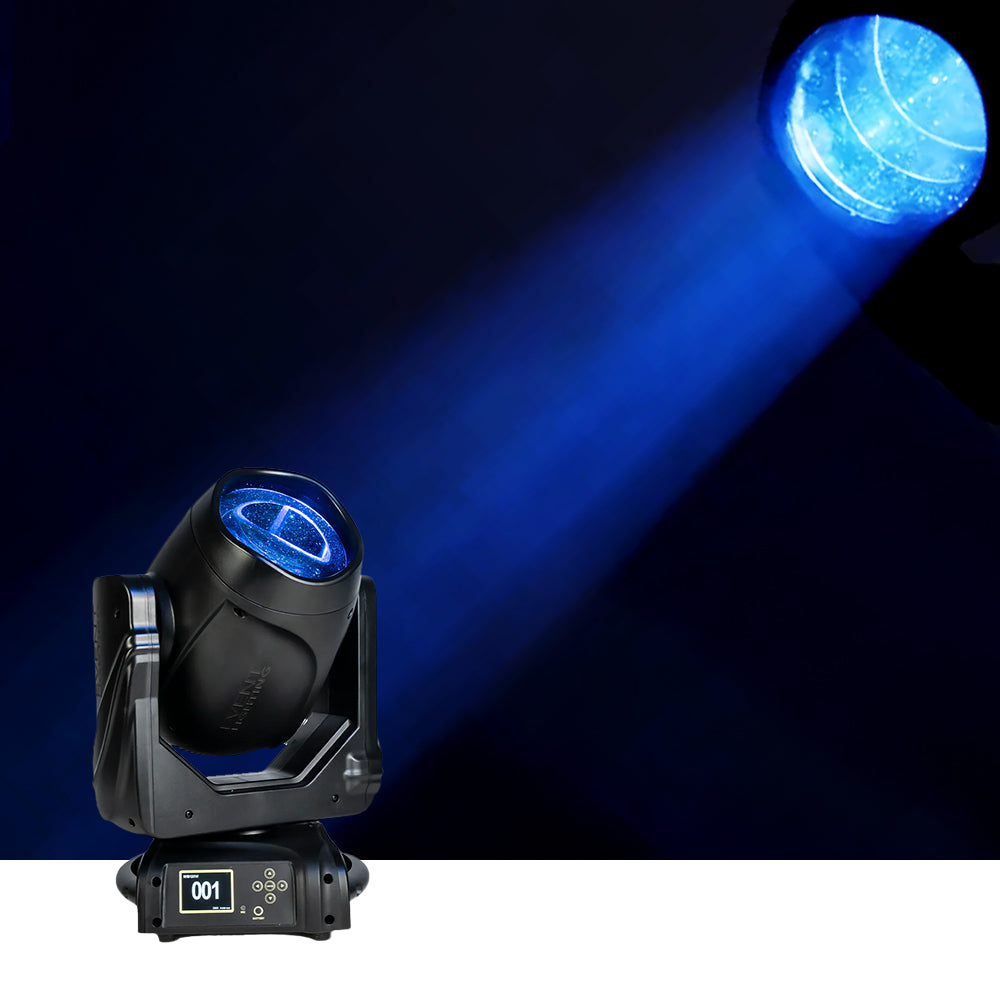

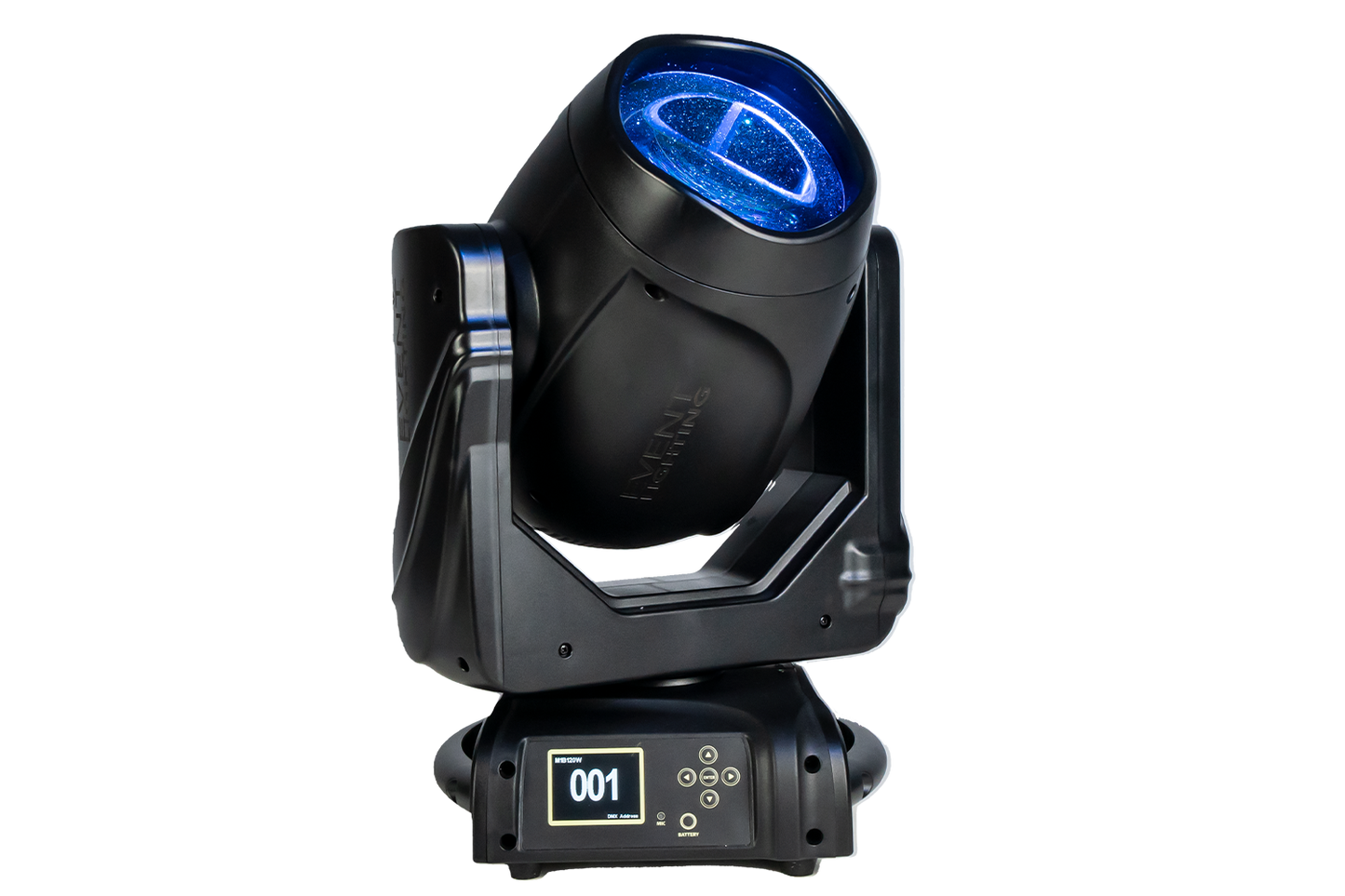

With a beam angle of just 1°, the HAVOC B120 produces a very narrow beam, powered by a 120W White LED. This fixture features 14+ open colours, 17+ open static gobos and two prisms as well as frost filter.

Photometrics

• Light Source: 120 W White LED
• Beam Angle: 1°.
• Output: 2,170 lumen, 150,000 lux @ 5 m
• LED Lifespan: 60,000 hours.

Colour

• 14 colours + open

Gobo

• 17 gobos + open

Effects

• Focus: Motorised
• Prism: 6-linear and 8-facets prisms
• Frost: Yes

Movement

• 16-bit, auto-reposition
• Pan: 630° (4.3 s), 540° (3.9 s)

• Tilt: 233° (2.2 s)


Power

• Input Voltage: 100~240 V AC, 50/60 Hz, 172 W
• Connection: True1 in/out


Control

• Operation Modes: DMX, auto, sound active, master/slave
• Control Protocol: DMX512, RDM (optional: W-DMX™)
• DMX Channels: 14 / 16

• RDM: Change DMX address, display flip, X/Y reverse

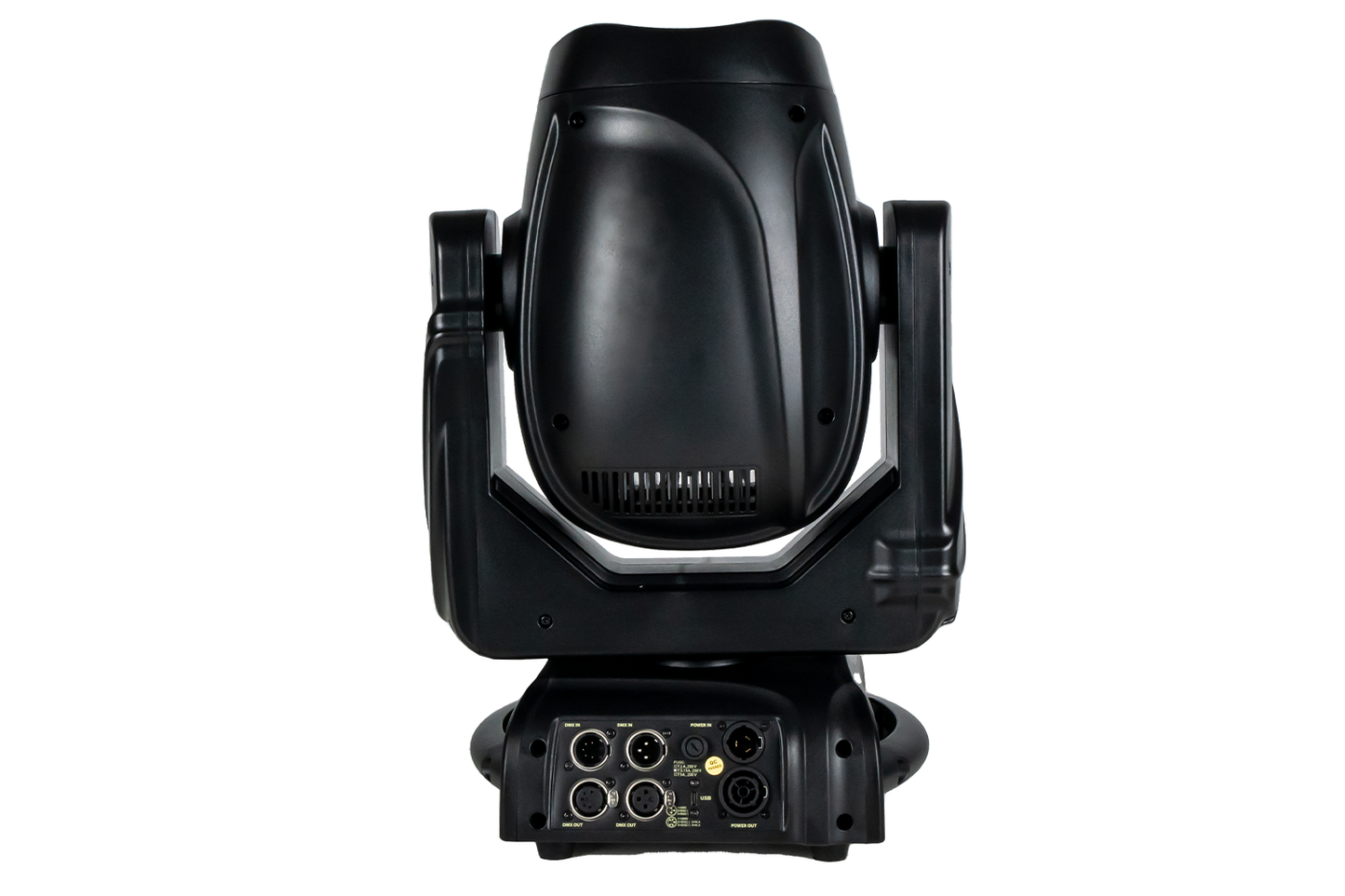

• Control Interface: 3-pin XLR in/out, 5-pin XLR in/out

• Display: 2.4″ Colour LCD Control Panel with battery power

Housing

• Materials: ABS & steel, matte black finish
• Finishing: Matte Black
• Cooling: Multi-sensor thermostat controlled variable speed fan
• IP Rating: IP20
• Net Weight: 12.75 kg
• Rigging: 2x omega brackets with 1/4 turn quick locks
