Product Description

• Light Source: 220W White LED 7,500K
• Beam Angle: 2.5°-14° (beam), 8°-36° (spot/wash)
• Output: 110,000 lux @ 2.5 m @ 2.5°, 2,550 lux @ 2.5 m @ 30°
• PWM: 1,000 Hz
• LED Lifespan: 50,000hours

Colour

• 1 colour wheel (10 Colours + Open)

Gobo

• Fixed: 1 x (16 + open) fixed gobo wheel
• Rotating: 1 x (7 + open) rotating gobo wheel

Effects

• Prism: 3-facet
• Dimming: 0~100%
• Strobe: 1.2~20Hz
• Frost: Yes
• Focus: 2~20 m linear via DMX

Movement

• 8/16 – bit, auto-reposition
• Pan: 360°/540°/630°
• Tilt: 90°/180°/270°
• Limit mode: Centre/Corner/Edge

Power

• Input Voltage: 90~260V AC, 50/60Hz
• Power Consumption: 276 W

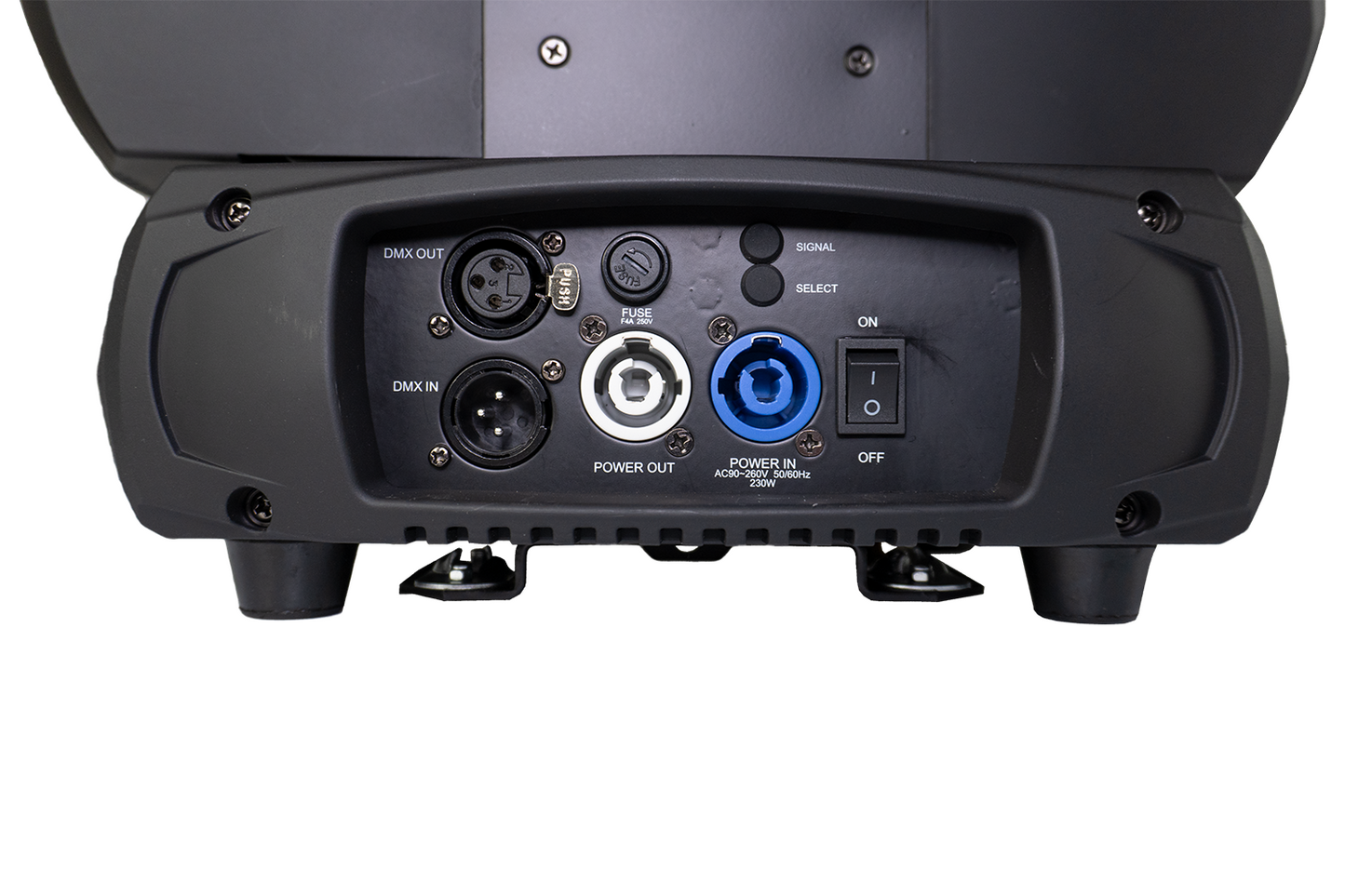

• Connection: PowerCON in/out
• Fuse: F4A, 250V

Control

• Protocol: DMX512
• Operation modes: DMX, manual, auto, sound active, master/slave
• DMX Channels: 14/16
• Interface: 3-pin XLR in/out
• Built-in Programming: Yes
• Sound Active: Yes
• Display: 4-button 2.4inch TFT LCD display control panel

Housing

• Materials: Metal & flame retardant ABS
• Finishing: Matte black
• IP rating: IP20
• Cooling: Fan
• Net Weight: 15.5kg
• Rigging: 2x omega brackets with 1/4-turn quick locks

Optional Accessories

• Road case: LM2CASEVL
• Wireless DMX: WDMXLM
