Product Description

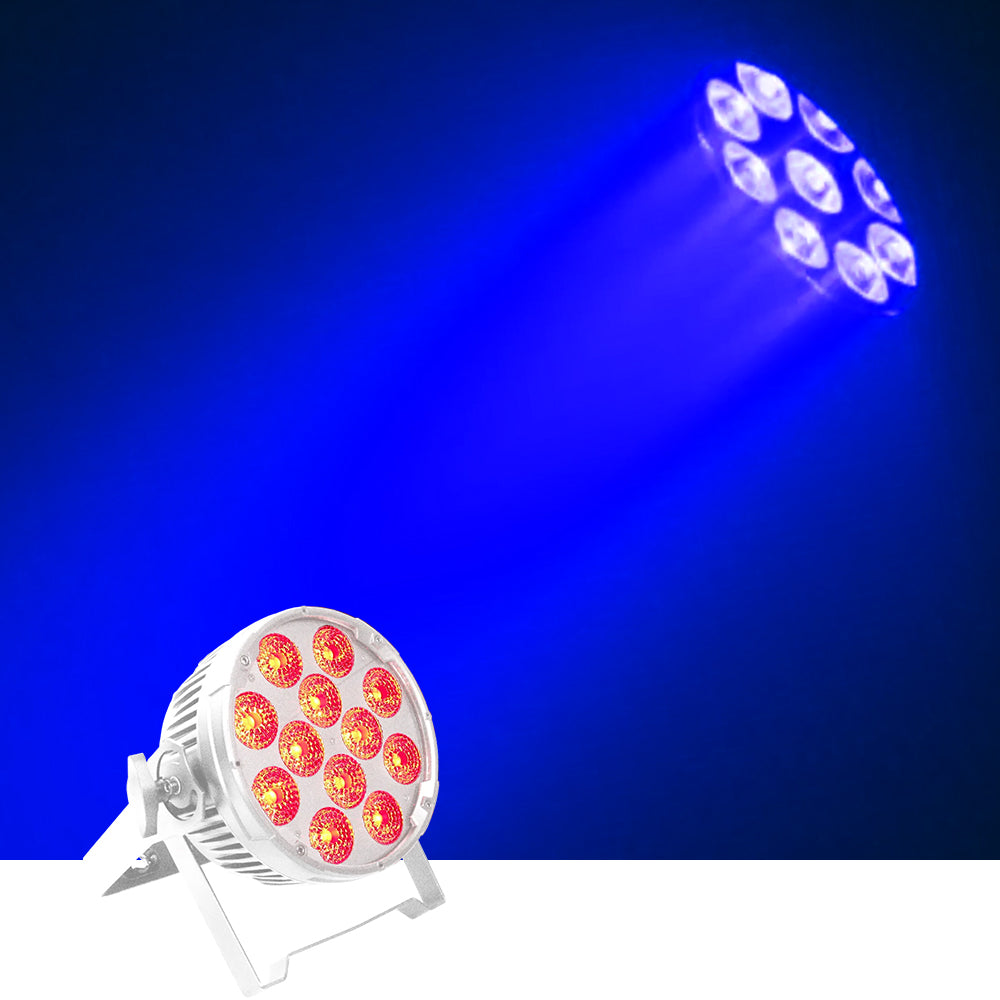

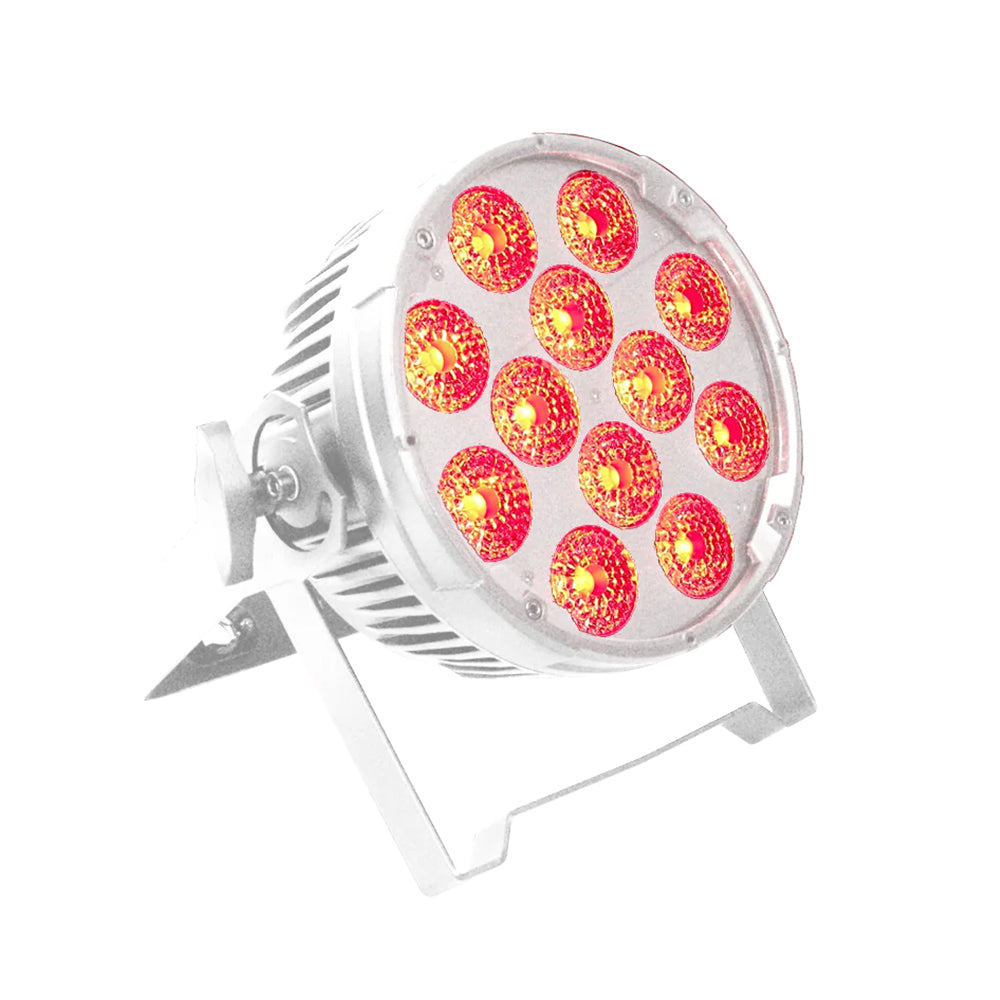

The Event Lighting PAR12Q-WH is a versatile lighting fixture designed to elevate any event or production. Featuring 12 x 8W RGBW LEDs, it offers a rich spectrum of colours and precise illumination. With a beam angle of 30° (optional 55°), you can tailor the coverage to suit your space perfectly. Experience a dazzling output of 4,680 lux at 2.0 meters, ensuring your stage or venue shines with brilliance.

With 5 x 16-bit Dimming Curves and adjustable strobe settings ranging from 1 to 30Hz, you have full control over your lighting effects. Its flexible operational modes include DMX, auto run, sound active, and more, all easily navigated through the intuitive 4-button LCD control panel. Plus, with a sturdy white die-cast aluminium housing and fanless cooling design, durability and reliability are guaranteed.

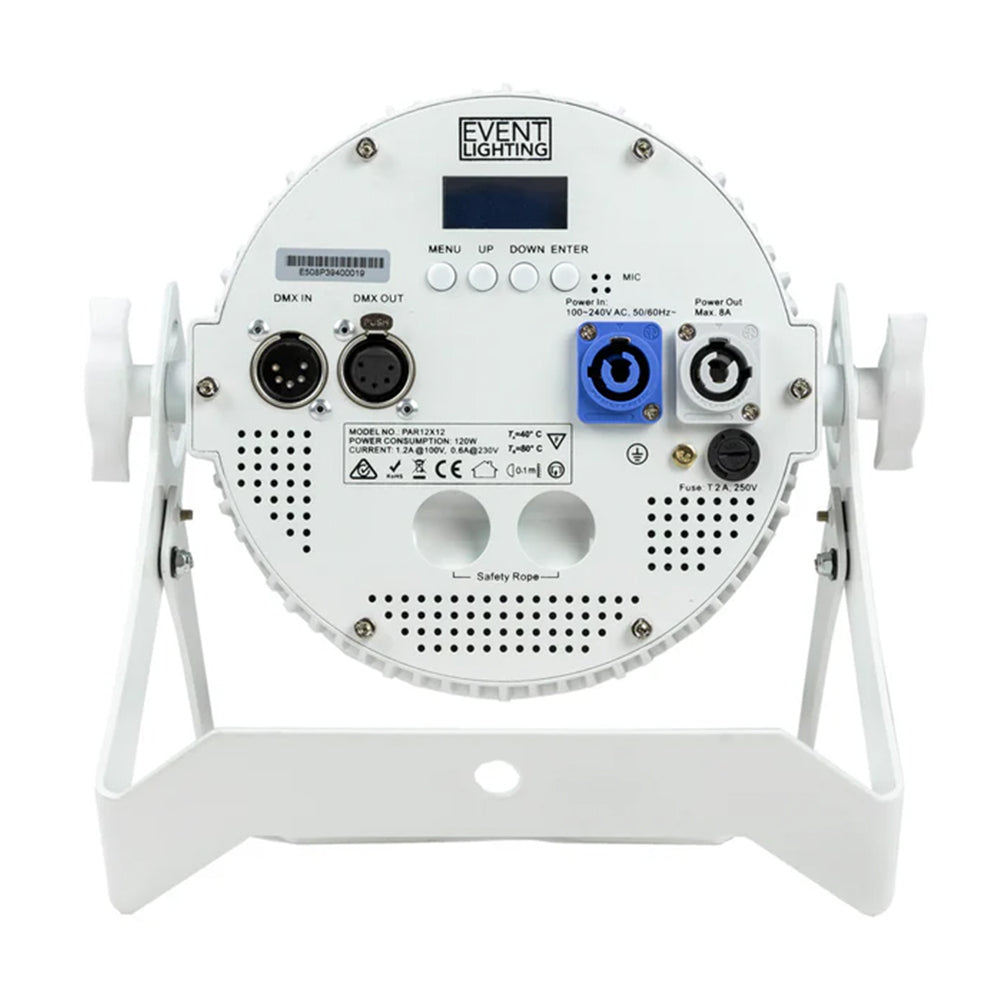

The PAR12Q-WH comes with True1 in/out, 5 pin DMX in/out and includes an omega bracket for quick and easy installation.

Specifications:

Photometrics

• Light Source: 12 x 8W RGBW LEDs
• Beam Angle: 30° (optional: 55°)
• Output: 4,680 lux @ 2.0m full on
• PWM: 2,940Hz
• LED Life: 50,000 hours

Effects

• Dimming: 5 x 16-bit Dimming Curves
• Strobe: 1~30Hz

Power

• Input Voltage: 100V~240V AC, 50/60Hz, 98W
• Power Connection: True1 in/out

Control

• Operational Modes: DMX, WDMX (optional), auto run, sound active, master/slave, manual colour control, static colour control
• Display: 4-button LCD control panel
• DMX Protocol: DMX512
• DMX Channel Mode: 1 / 2 / 3 / 4 / 6 / 10
• DMX Interface: 5-pin XLR in/out

Housing

• Housing Materials: Die-cast aluminium, matte white finish
• Cooling: Fanless Cooling
• Dimension: 263 x 293 x 98mm
• Net Weight: 3.2kg
• Rigging: 1 x Omega bracket with 1/4 turn quick locks

MISC

• Road case: PAR12BDCASEWC, PAR12CASEWC
• Barndoor Kit: PAR12BDKIT-WH
• Wireless receiver: CRMXTRXII
