Product Description

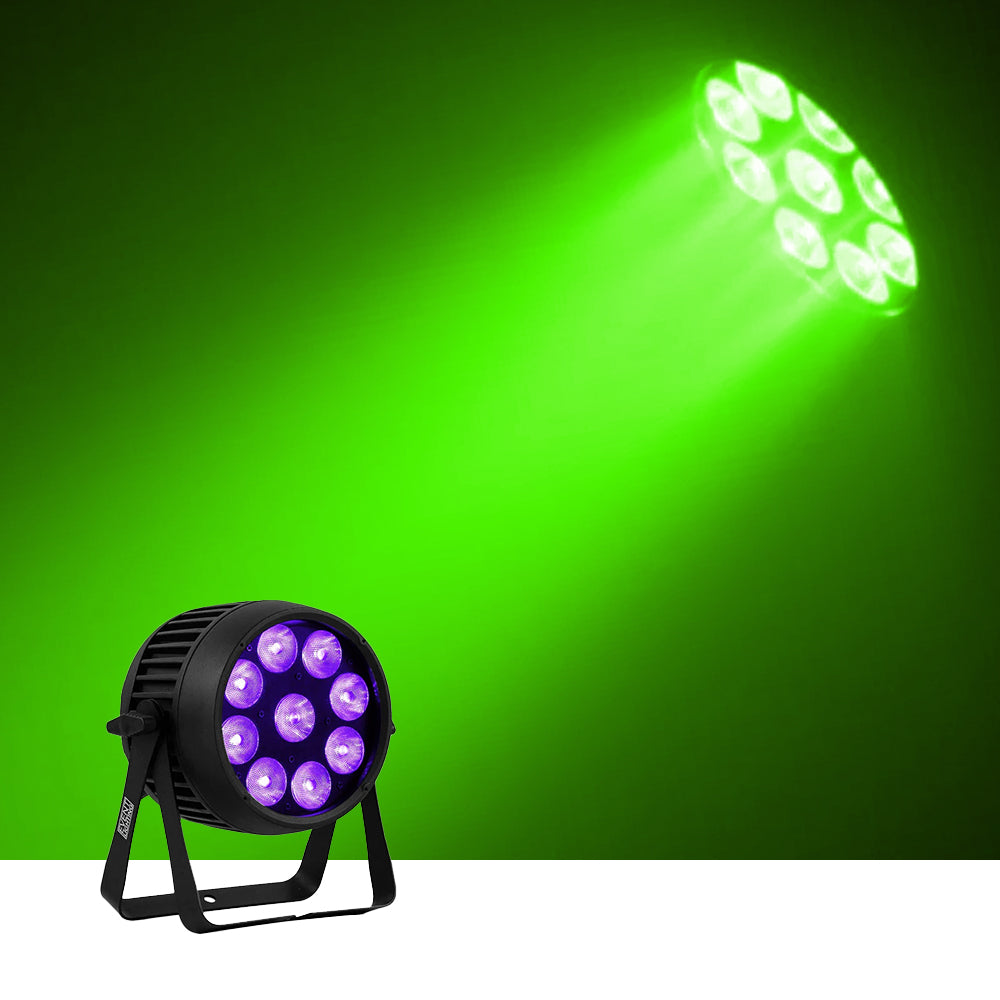

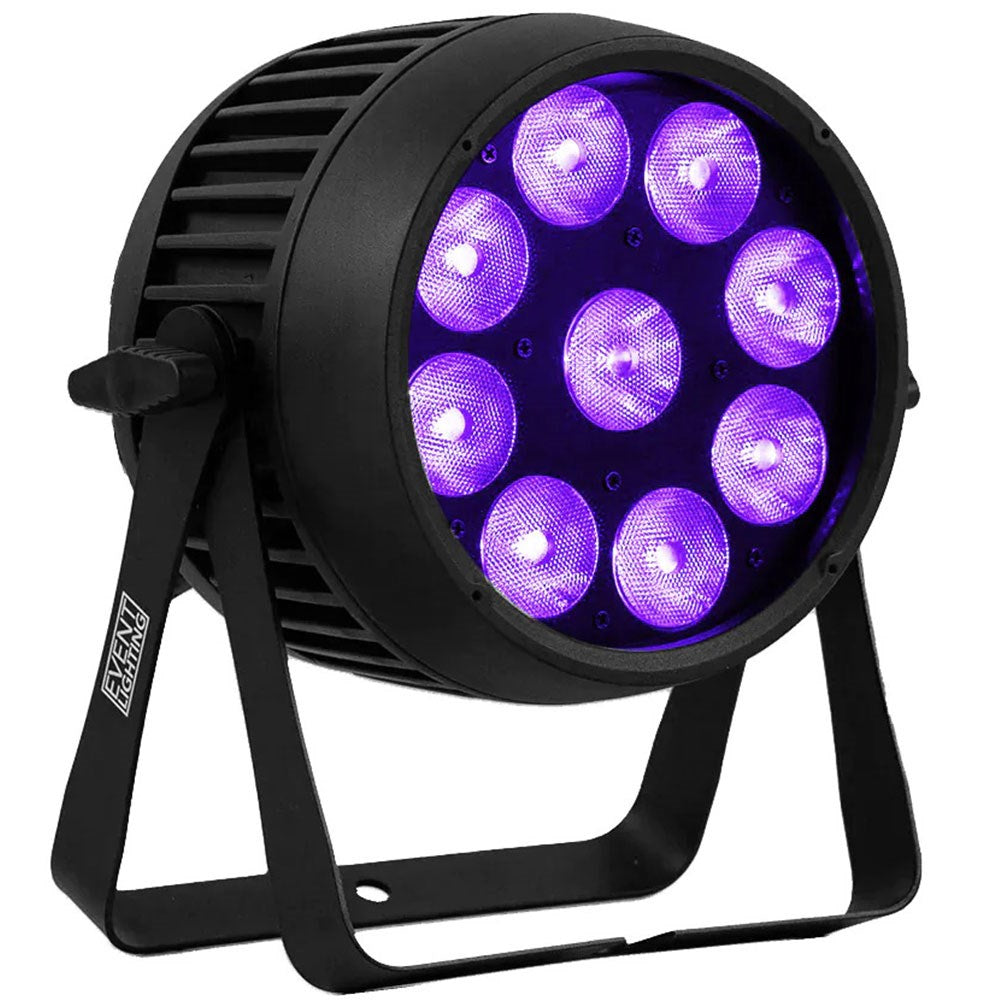

The Event Lighting PAR9X12H-IP is a mid-sized outdoor rated fixture, featuring 9 x 12W RGBWAU 6 in 1 LEDs. With multiple operation modes and IR control, the PAR9X12H-IP fits effortlessly into any outdoor lighting set up. This fixture comes in a sturdy matte black aluminium frame and boasts a 50,000 hour lifespan for the LEDs, ensuring longevity and reliability.

Specifications:

Photometrics

• Light Source: 9 x 12W RGBWAU LEDs
• Beam Angle: 25°
• LED Life: 50,000 hours

Effects

• Dimming: 0~100%
• Strobe: 1-20Hz

Power

• Input Voltages: 100V~240V AC, 50/60Hz, 72W
• Power Connection: Seetronic® Outdoor True1 in/out

Control

• Operational Modes: DMX, manual, auto, sound active, master/slave, WDMX optional
• Display: OLED touch display with glass buttons
• Control Protocol: DMX512, Optional: Wireless DMX (W-DMX)

• DMX Channels: 6 / 10
• DMX Interface: Seetronic® 5 Pin Outdoor DMX in/out

Housing

• Housing Materials: Die-cast aluminium, matte black finish
• IP Rating: IP65
• Cooling: Fanless Cooling

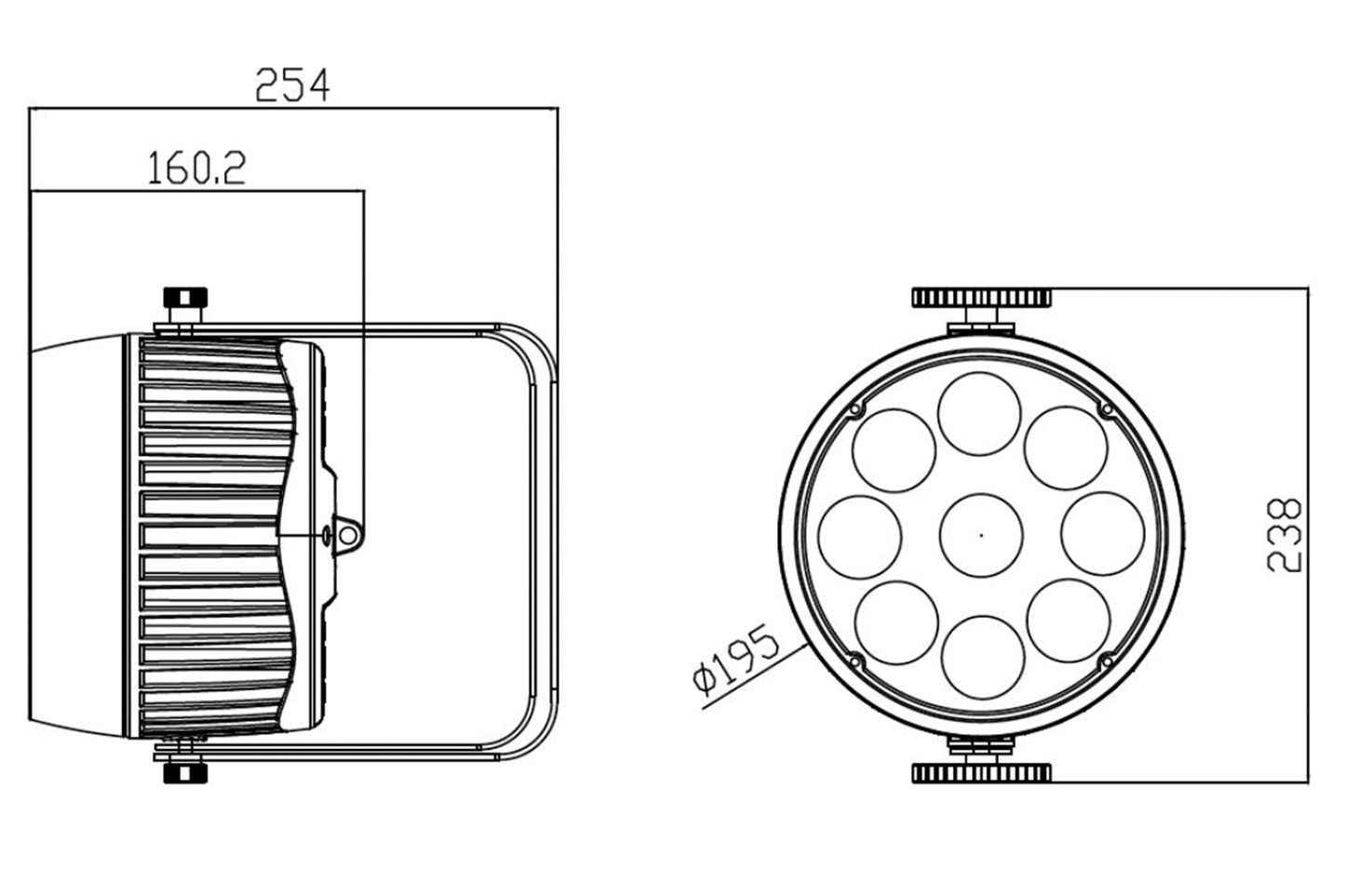

• Dimensions: 268 x 195 x 245mm
• Weight: 3.9kg

Misc

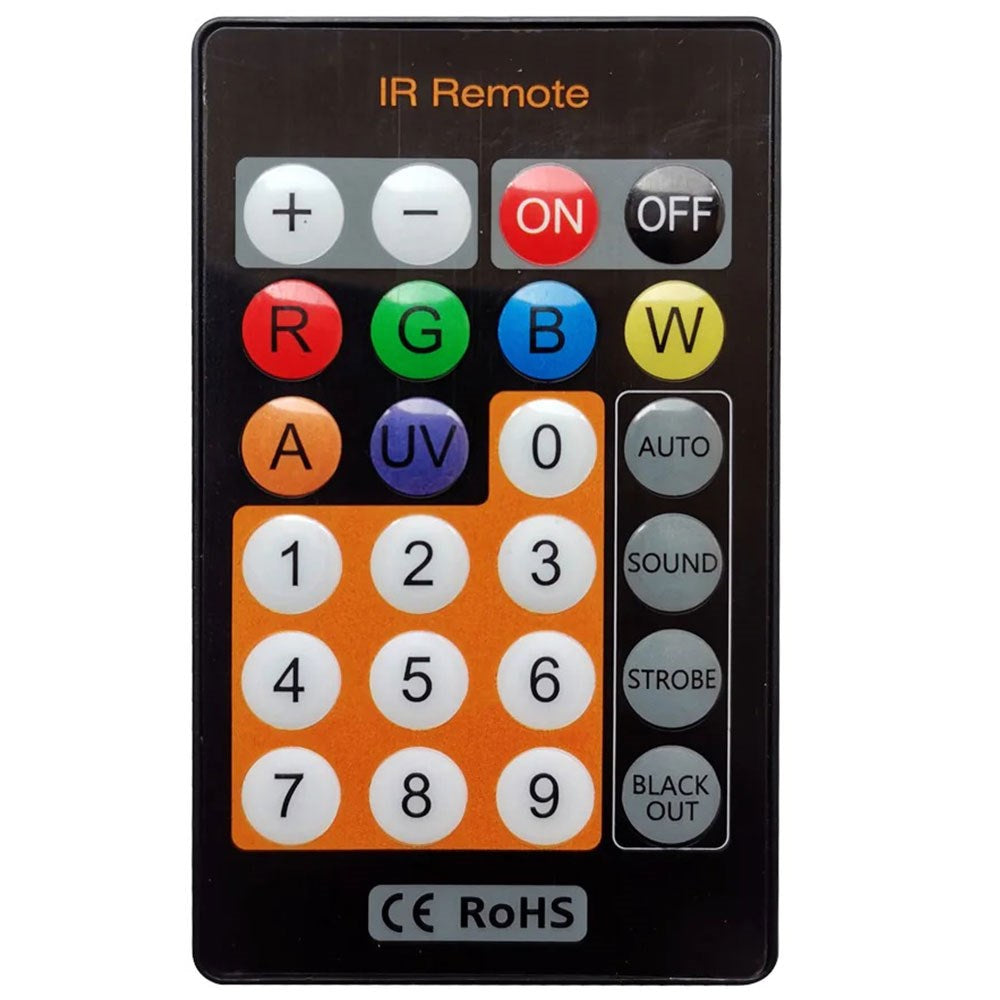

• Accessories Included: 1M Seetronic® Outdoor Powercon, 1M Seetronic® Outdoor DMX Cable, IR Remote Controller
• Compatible with: PAR9CASEWC

IMPORTANT:  Only use the provided Outdoor DMX cable in the device’s DMX out port. The use of other cables will cause the cable to become stuck in the port, requiring the unit to be repaired.
