Product Description

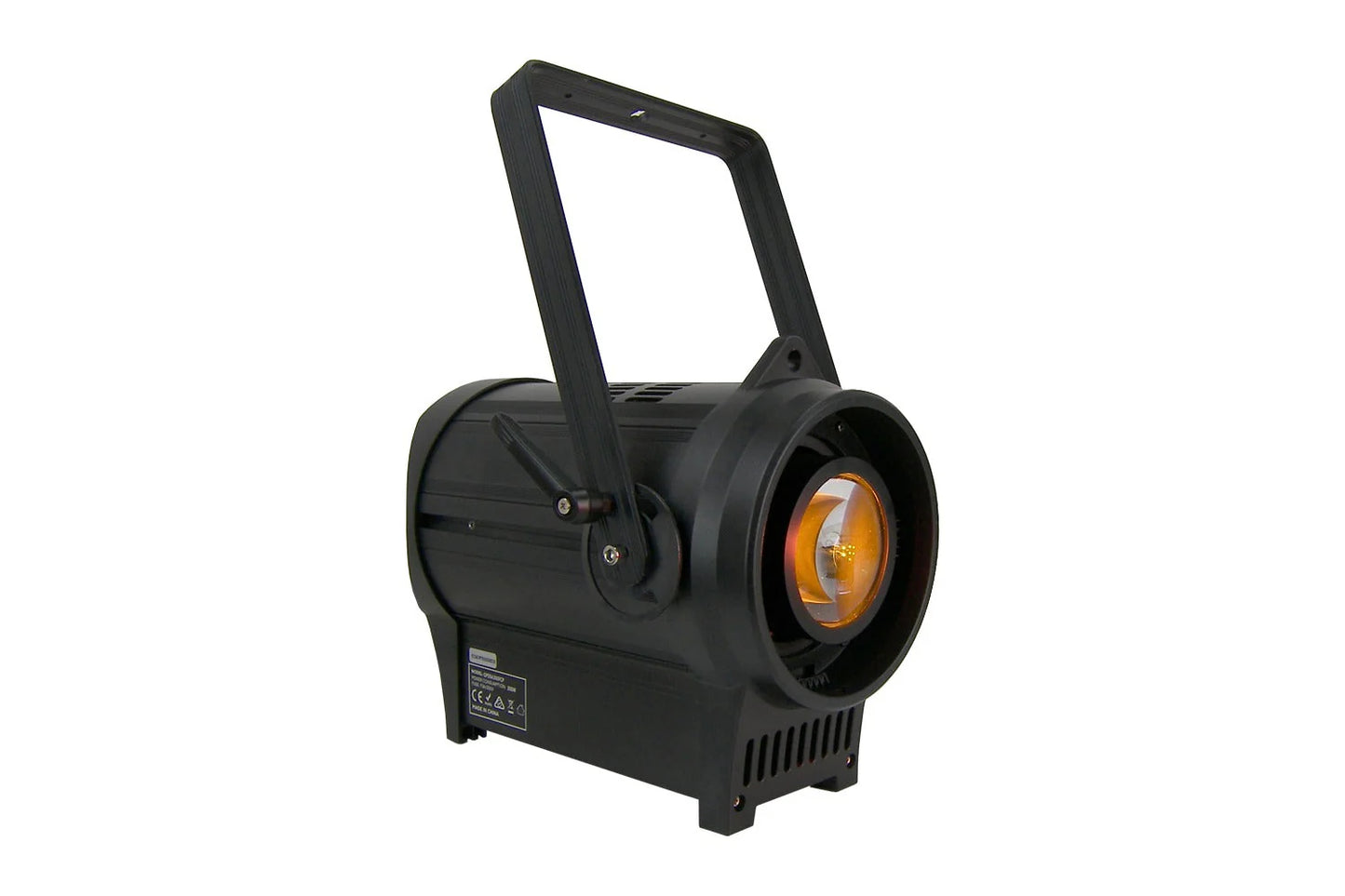

Opera Series Profile LED Engine with 300W Variable White, True1 In/Out, 3 & 5 pin DMX In/Out, includes Gobo Holder

Photometrics

• Light Source: 300W COB Warm white + Cool white
• CRI: Up to 95

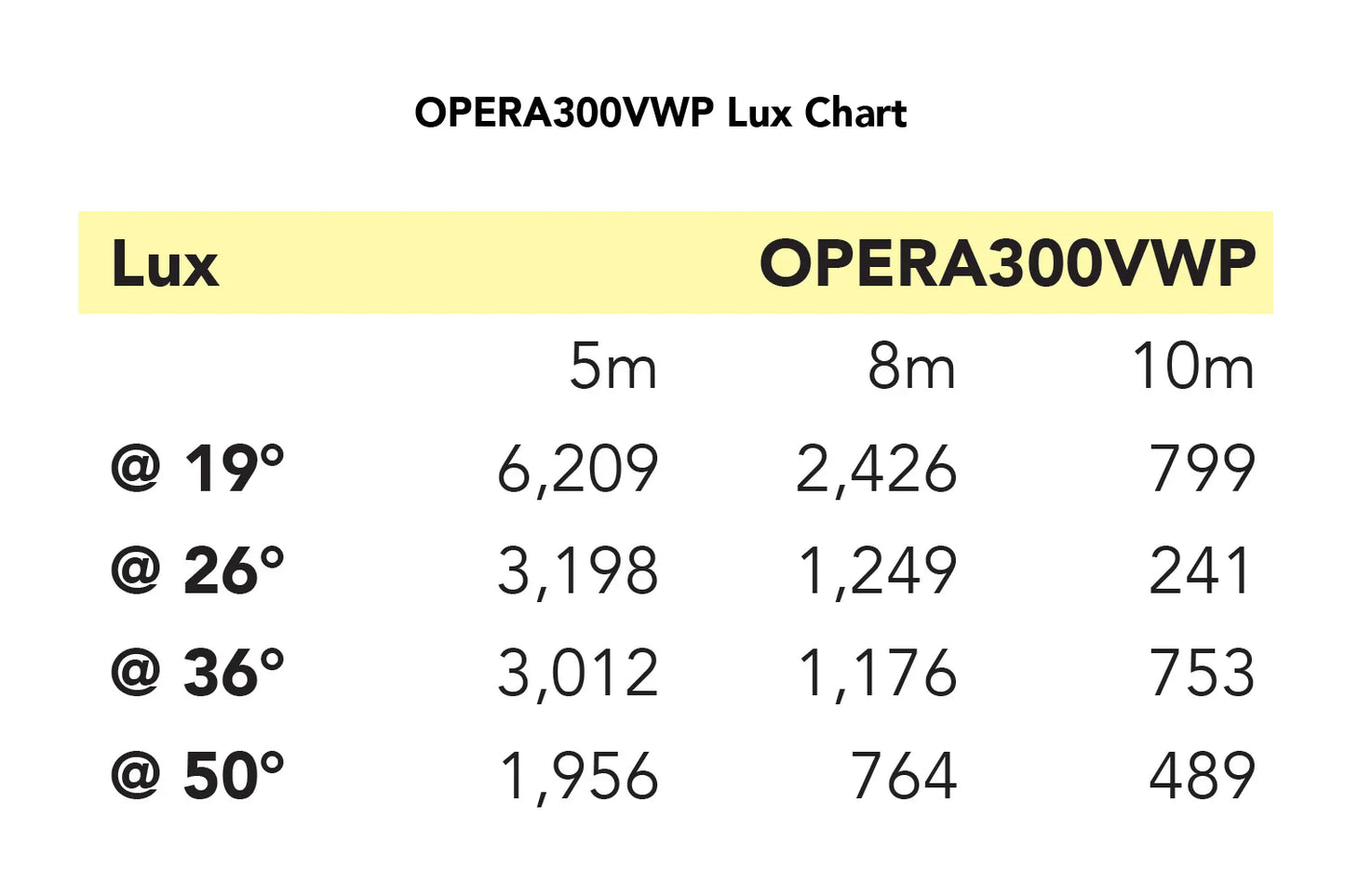

• Beam Angle: 19°, 26°, 36°, 50°, 15°-30°, 25°-50°
• Optional Lens: PSLII19, PSLII26, PSLII36, PSLII2550, PSLII1530
• Colour temperature: 3200K-5600K CCT adjustable

• Output: 300W
• PWM: 600Hz - 8,000Hz optional
• LED Lifespan: 50,000 hours

Effects

• Dimming: 0~100%, 16-bit
• Optical system: Special Imaging glass optical lens group
• Iris: PSIRIS (Optional)

Power

• Power Supply: 100~240V AC, 50/60Hz, 300W
• Power Connection: True1 in/out

Control

• Operational Modes: DMX, RDM, Manual
• Display: 4-button OLED control panel
• Control Protocol: DMX512

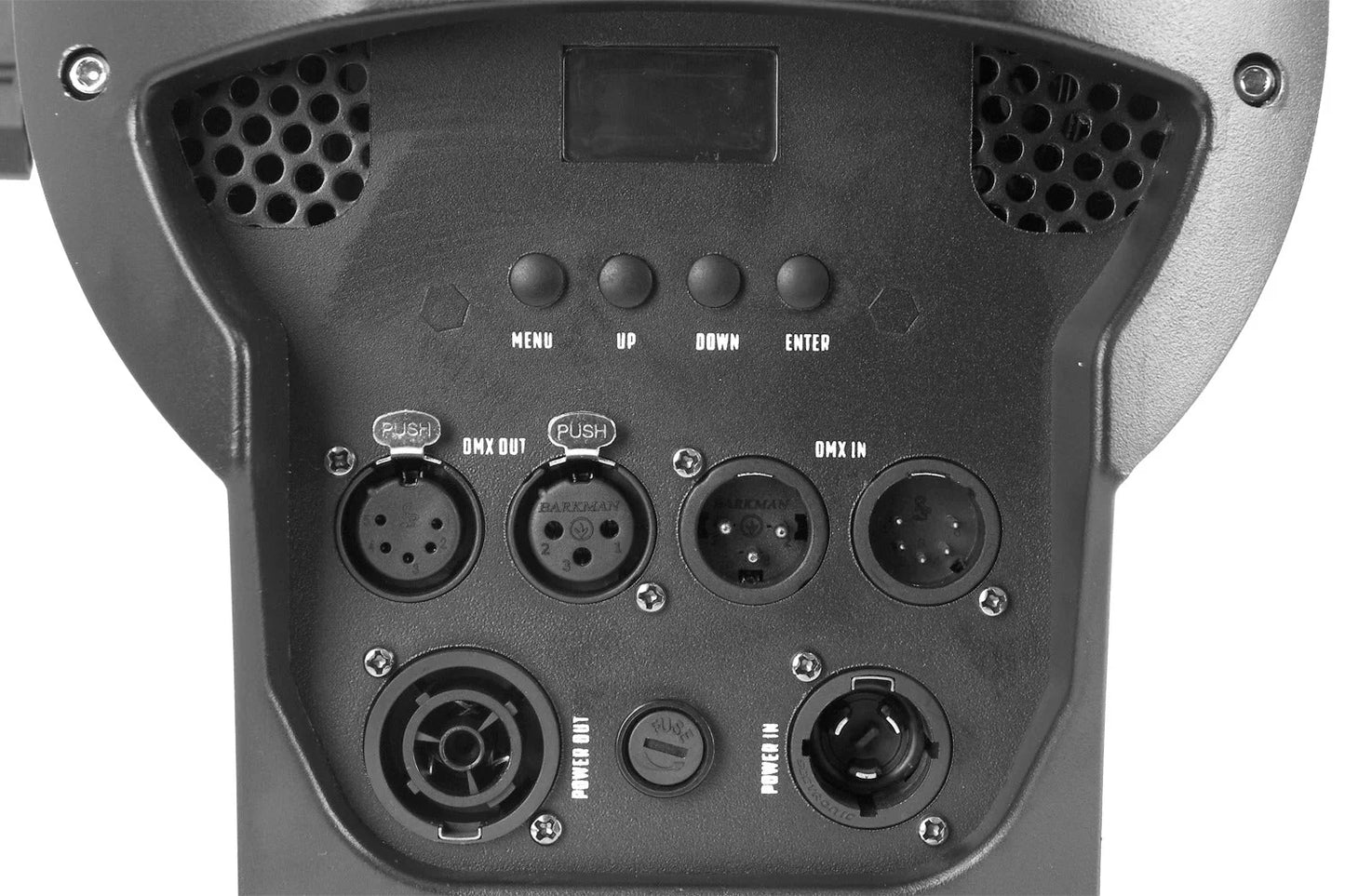

• Control Interface: 3 pin & 5 pin XLR - in / out
• DMX Channels: 1CH / 2CH / 6CH / 9CH optional

Housing

• Housing Materials: Die-cast aluminum, matte black finish
• Tilt angle: ±90°
• Gobo Holder included
• 2 x M8x30 bolts included
• Cooling: Silent fan, intelligent automatic temperature regulation system
• Net Weight: 10kg

• IP rate: IP23
• Overall Size: 538 x 270 x 395mm

Download user manual
