Product Description

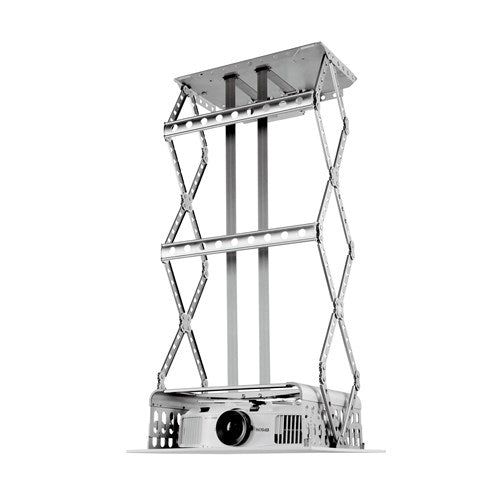

X-arm projector ultra-thin electric elevator, for the new generation of projector electric elevator products, in line with international standards.Special use of small and medium-sized projectors and installation space of small environment design, such as: meeting room, training room, multimedia classroom and other places
The elevator USES x-type composite mechanical arm to lift and lower, stable operation, electronic travel positioning, one-key setting, simple operation;The hidden installation design can be integrated with the ceiling after being closed.Long-term service life design, easy maintenance and overload protection design to prevent extreme overload, effectively avoid the danger caused by extreme overload
* the size of the projector is the recommended size for reference only. The actual size shall prevail.

• Product Dimensions(mm): 600×600×215
• Net Weight(kg): 20
• Max Projector Dimensions (With Wire And Lens)(mm): 480x180x480
• Max Load(kg): 12
• Power(w): 50
• Max Travel(mm): 1000
• Precision(mm): ＜2mm
• Noice(dB): ≤55dB
• Voltage(v): 220V/110V
• jib attachment(mm): 360x220
• Decorative Plate Dimensions(mm): 600x600
• Ceiling Opening Dimensions(mm): 590x590
• Angle Adjustments Up/Down/Left/Right: 1 8 4 4
• Dry Contact(Y/N): √
• Wireless Control(Y/N): √
