Product description

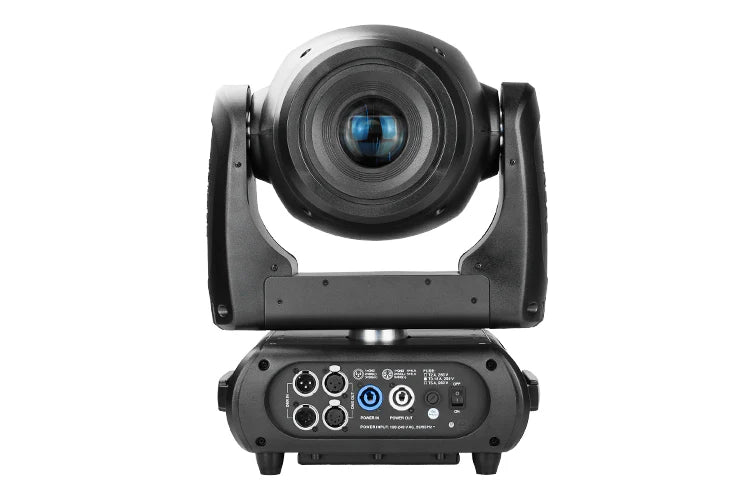

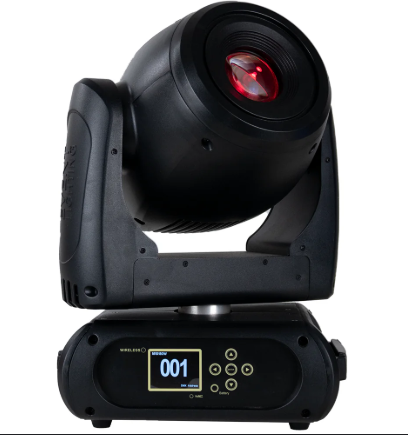

The M1S190W is a feature packed mover with two gobo wheels, an iris, frost, 3/8 facet prism wheels and 3- and 5-pin DMX on board, in a compact 14kg fixture.

Photometrics

• Light Source: 190W White LED Module, 14,910K
• Beam Angle: 12°
• Output: 15,400 lumen, 35,420 lux on @ 2.5m
• PWM: 1,200Hz
• LED Lifespan: 60,000 hours

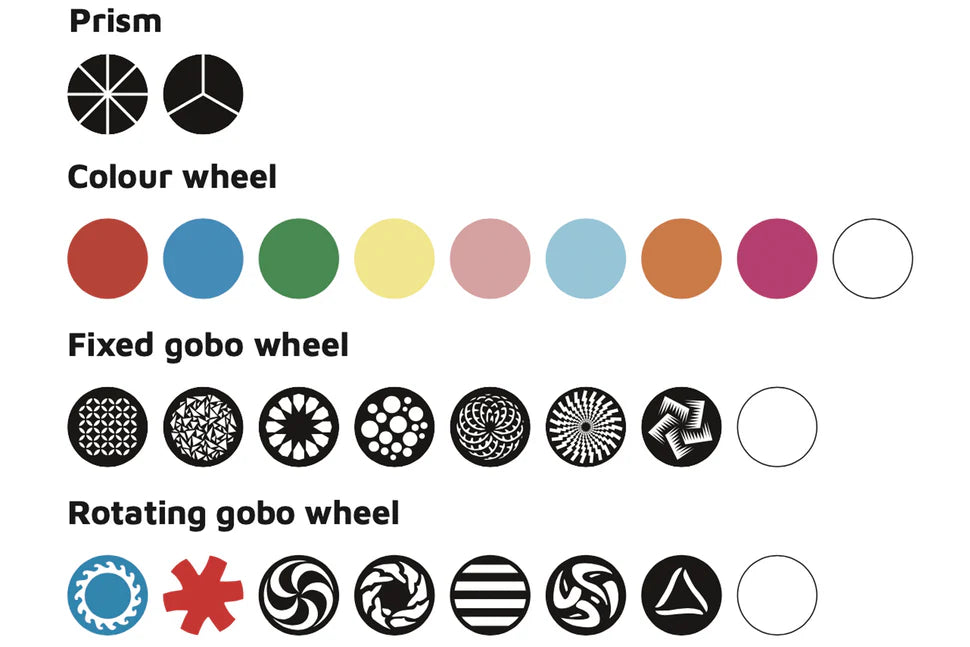

Colour 8 Colours + Open

Gobos

• Fixed: 1 x 7 + Open Fixed Gobo Wheel
• Rotating: 1 x 7 + Open Interchangeable Rotating Gobo Wheel (Outside Ø27mm, Inside Ø22mm).

Effects

• Dimming: 0~100%
• Strobe: 0.5~26 Hz
• Focus: Motorised
• Prism: 3-facet, 8-facet
• Frost: Yes
• Iris: Yes

Movement 8 / 16 bit Auto Reposition

• Pan: 630° (3.2 sec) or 540° (2.9 sec)
• Tilt: 233° (1.9 sec)
