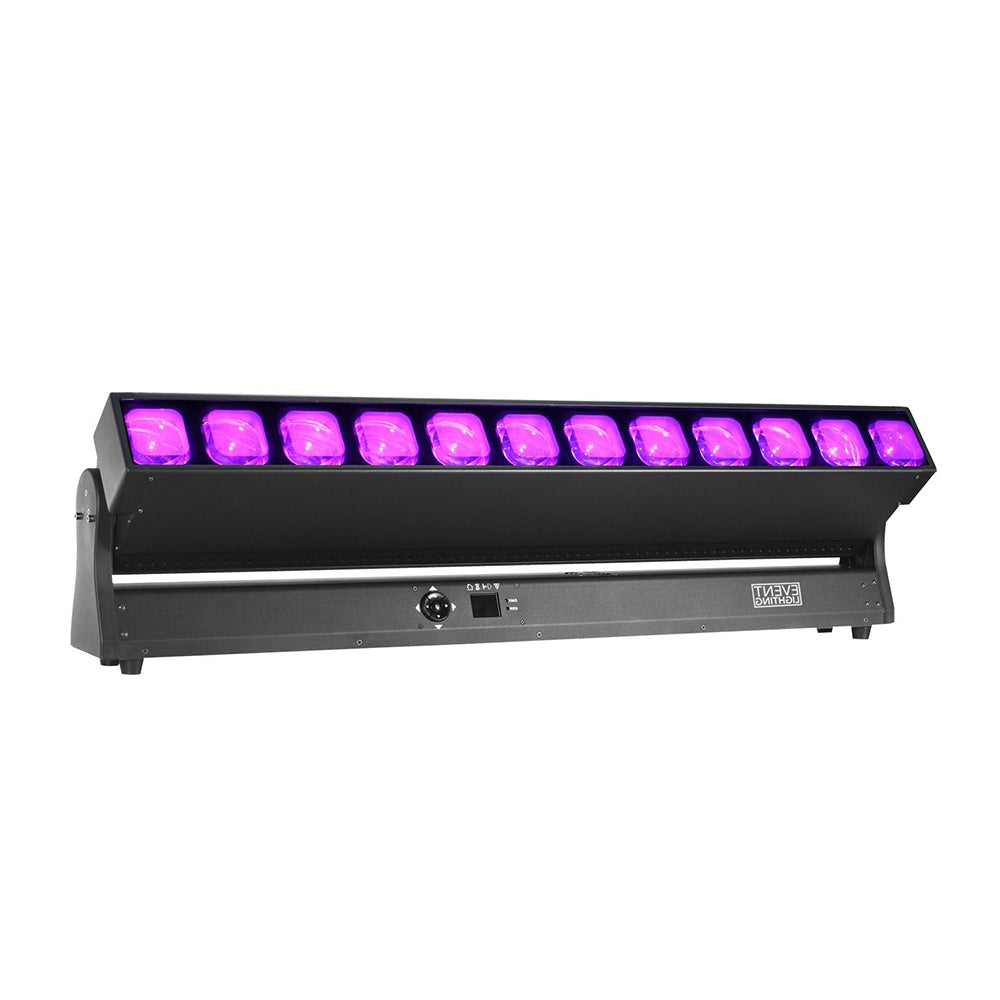

Tilt bar with zoom 12 x 60W RGBW LEDs, 3-38 degree zoom, powercon in/out, 5 pin DMX in/out

Photometrics

• Light Source: 12x 60 W RGBW 4 in 1 LEDs
• Beam Angle: 3° - 40°
• LED Life: 50,000 hours


Effects

• Dimming: 0-100%
• Electronic zoom:  3° - 40°
• Tilt: 220°
• Strobe: 0~25 Hz
• Colour: RGBW colour mixing

 Power

• Input Voltages: 100~240 V AC,50/60 Hz
• Power consumption: 680W
• Fuse: 5A/250V
• Power Connection: powercon in/out

Control

• Operation Modes: DMX, auto, sound active, master/slave

• Display: LCD control panel
• Control Protocol: DMX512
• DMX Channels: 16 / 40 / 50 CH
• Control Interface: 5-pin XLR in / out
• Daisy chain: 3pcs

Housing

• Housing Materials: Aluminium, matte black finish
• IP rate: IP20
• Cooling: Fans with temperature control
• Dimension: 1080 x 130 x 315 mm
• Net Weight: 22 kg

• Road case: SURF12X60C
