Product description

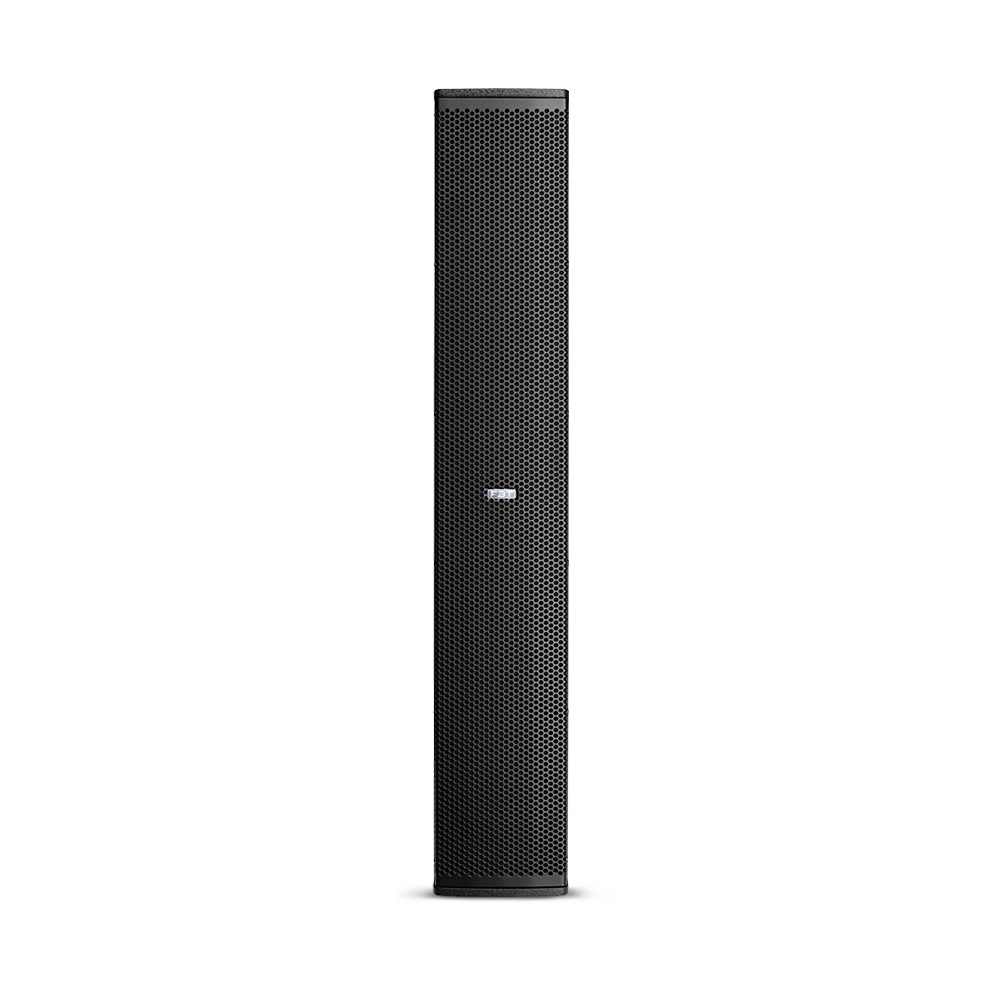

• ?Bi-amplified 2-way line array
• 4 x 165mm (6.5”) custom woofers with 38mm (1.5”) coil
• Neodymium B&C compression HF driver with 36mm (1.4”) throat and 64mm (2.5”) coil
• Large format FBT waveguide with 100 ° H x 25 ° V dispersion
• Frequency response from 65Hz to 20KHz
• Class-D 600Wrms for LF and 300Wrms for HF amplifiers with switch mode power supply
• DSP processor with 8 equalization presets
• Control panel with XLR input and link, volume, presets, filter-HP, ground-lift
• Neutrik PowerCON IN and LINK power connectors
• Cabinet in 12mm (0.5”) birch plywood with scratch-resistant varnish, two side handles, rubber inserts for protection and upper and lower anti-slip
• 4 lateral inserts, two upper and two lower points designed to accept quick release pins or M10 screws, two rear M6 suspension points. New hardware for flying installations, for ground setups, and the possibility of coupling two or more CLA 406.2A / CLA 206A with an angle of 0°-20° in 5° steps vertically, all with optional quick release pins for touring.
• 35mm stand socket
• Top side inclined by 10° to have maximum flexibility of use in combination with other CLA 406.2A or CLA 206A in order to adapt the vertical dispersion angle of the system to the listening area.
• The system can be used both in point source systems with the CLA 118SA sub and in vertical clusters, with the CLA 206A down-fill.
