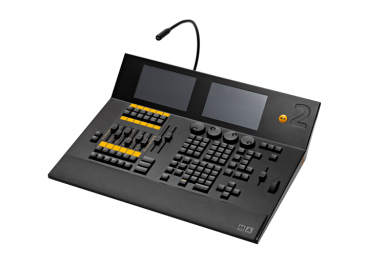

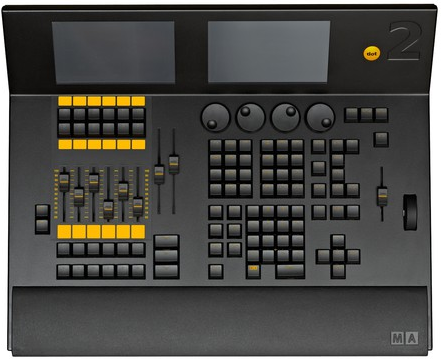

MA Lighting - Dot 2 Core DMX Lighting Desk

Hire - MA Lighting - Dot 2 Core DMX Lighting Desk

Product description

A compact lighting console designed for small to medium sized productions with up to 4,096 control channels.

  • A full range of clever programming and playback features provide intuitive access to advanced functionality.
  • Access to generic fixture functions is via a Smart Dialogue and Store Look functionality.
  • Automated tools; Track & Shield and Auto-Unblock simplify cue-list management and Auto-Fix allows playback page changes to occur without unexpected results.
  • 100mm faders provide full access to the master playback list at all times and a tactile level wheel gives access to lighting levels.
  • Command-line syntax is fully supported alongside graphically assisted touch screen control of all features.

Dot2 hardware is compact, durable and remarkably lightweight. Its optional modular plug & play F-wings and B-wings allow playback expansion and the full-tracking-back-up functionality ensure  trouble free running.

Live Time, Tap Sync and multiple touch screens allow instant access to all playback functionality, and sophisticated features like Soft-LTP automatically preserve key-lighting levels without going through black.

Physical specs
Dimensions 427 x 546 x 161mm / 16.8 x 21.5 x 6.4 inch
Input connectors 1 x etherCON (dot2-Net, sACN, Artnet), 1 x XLR 5pin (DMX), 1 x XLR 3pin (SMPTE), 1 x DIN (Midi), 1 x Sub-D 15pol (Analogue Remote), 1 x IEC 60320 C13/C14 (IEC cord)
Output connectors 4 x XLR 5pin (DMX), 3 x USB, 1x DVI-D, 1 x DIN (Midi), 1 x XLR 4pin (desk lamp)
Net weight 7.0kg / 15.4lbs
