Product description

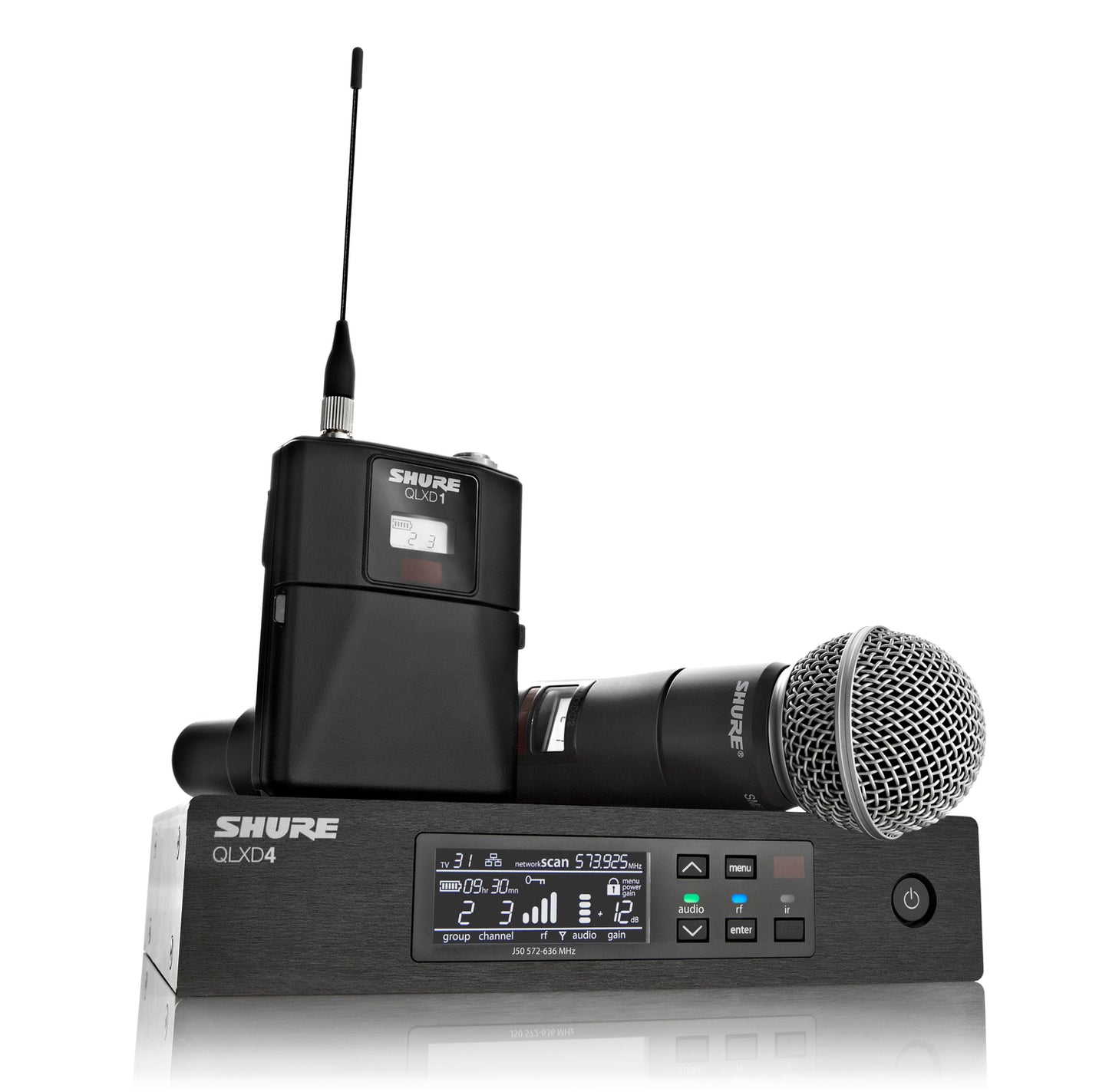

Shure QLX-D Digital Wireless is the clear choice for exceptionally detailed wireless audio in widely diverse and demanding environments.

A highly flexible system featuring streamlined setup and operation, QLX-D boasts impressive RF efficiency to get more channels on air using less spectrum, while the rugged all-metal construction withstands the rigors of constant use. From corporate seminars to music clubs classroom lectures to houses of worship, Shure QLX-D Digital Wireless has is covered - delivering confident performance, no matter what the venue.

QLX-D System Specifications

• RF Carrier Range: 470-937.5MHz, varies by region
• Working Range: 100m (328 ft)
• RF Tuning Step Size: 25 kHz, varies by region
• Image Rejection: >70 dB, typical
• RF Sensitivity: -97 dBm at 10^-5 BER
• Latency:
• Audio Frequency Response: QLXD1: 20Hz-20kHz (±1 dB) QLXD2: Note: Dependant on microphone type
• Audio Dynamic Range: >120 dB, A-weighted, typical
• Total Harmonic Distortion: <0.1%
• System Audio Polarity: Positive pressure on microphone diaphragm produces positive voltage on pin 2 (with repsect to pin 3 of XLR output) and the tip of the 6.35mm (1/4 inch) output.
