Product description

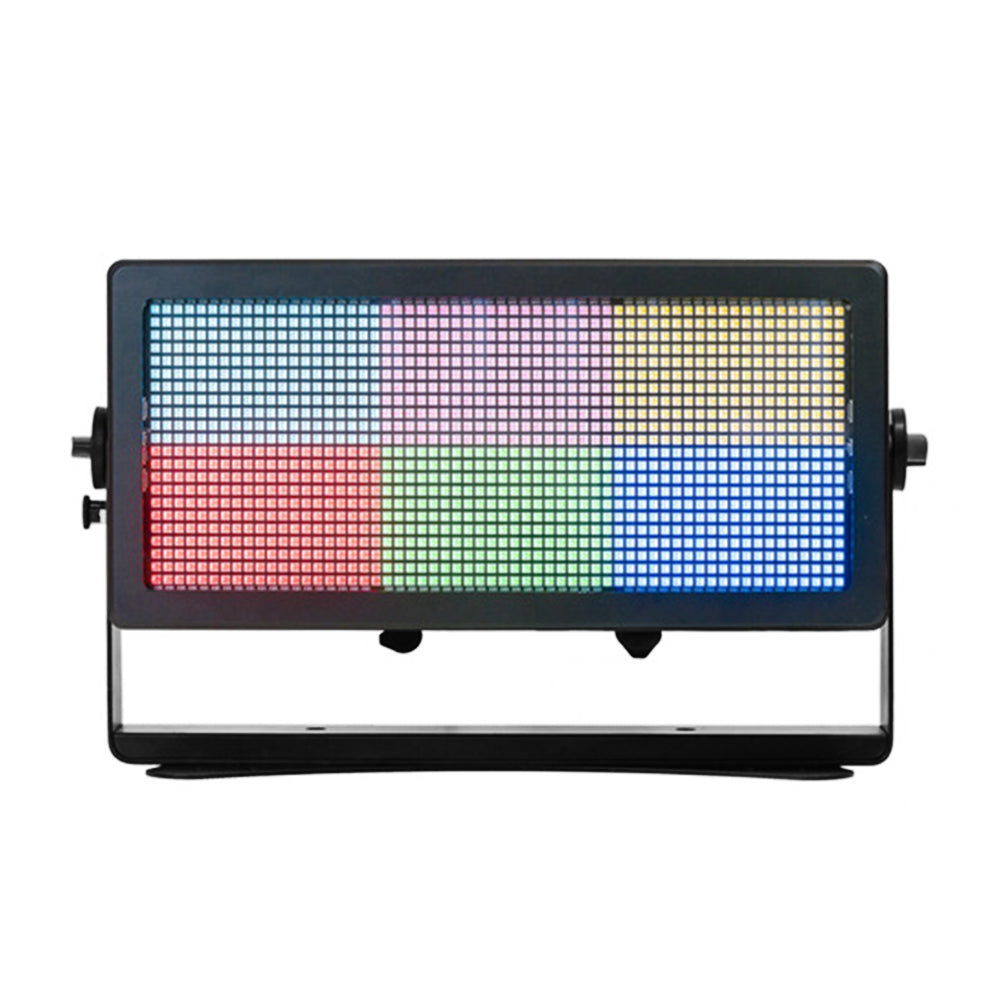

OUTDOOR 6-SECTION CONTROL RGBW PANEL

Photometrics

• Light Source: 1320 x 0.8W SMD5050 RGBW LEDs
• Beam Angle: 120°
• Output: 2,200 lux @ 3m RGBW full on
• PWM: 5,000Hz
• LED Life: 50,000 hours

Effects

• Dimming: 0~100%
• Strobe: 0.5~25Hz

Power

• Input Voltages: 100~240V AC, 50/60Hz, 1,150W
• Power Connection: Seetronic® True 1 In

Control

• Operation Modes: DMX, manual, auto, master/slave
• Display: 4-button LCD control panel
• Control Protocol: DMX512
• DMX Channels: 4 / 5 / 7 / 13 / 15 / 31
• Control Interface: 5-Pin DMX in/out

Housing

• Housing Materials: Die-cast Aluminium, matte black finish
• IP Rating: IP65
• Cooling: Thermostat controlled fan
• Dimension: 490 x 205 x 265mm
• Net Weight: 10.1kg
• Rigging: 2 x omega brackets with 1/4 turn
