InDESIGN EZ8-15Mk2 Ceiling Speaker

InDESIGN EZ8-15Mk2 Ceiling Speaker

Regular price $99
Regular price $1 Sale price $99
Sold out

Product Description

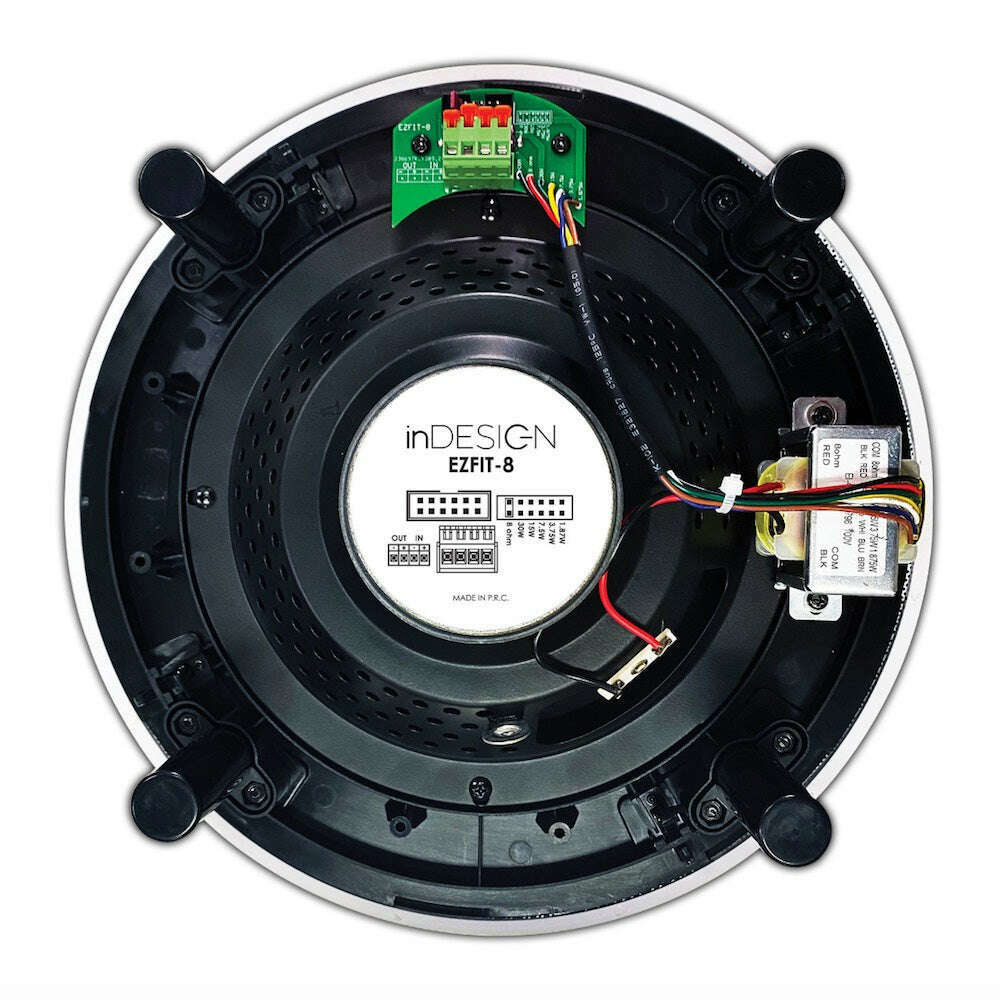

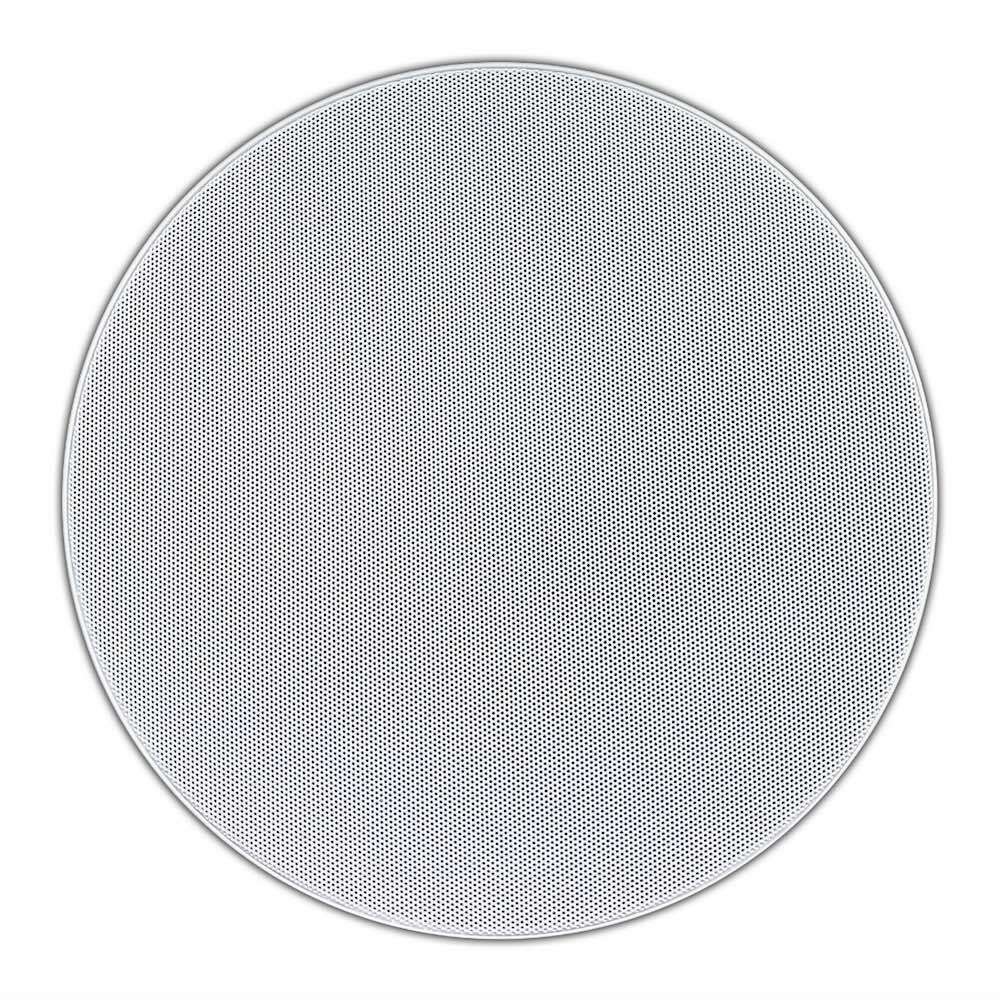

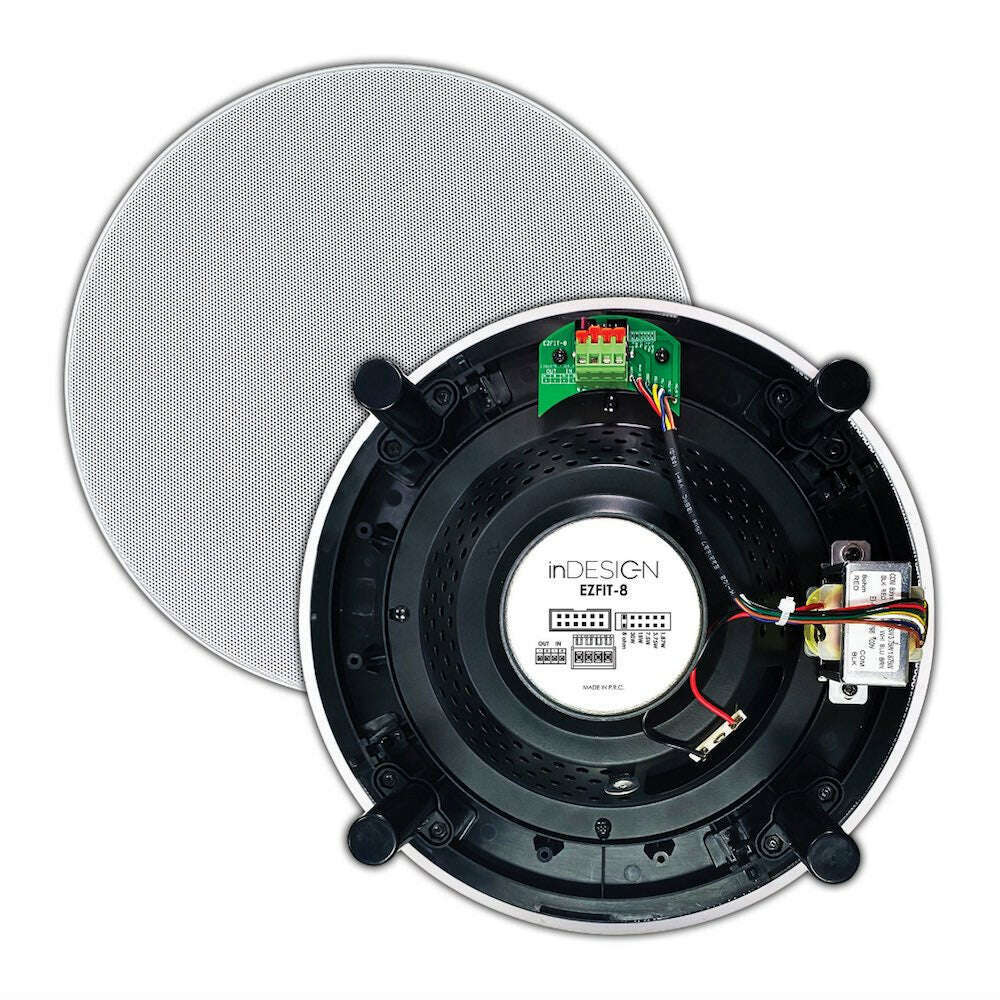

Indesign EZ8-15Mk2 8″ Coax Ceiling Commercial Speaker

  • Silk dome tweeter
  • 100V with new EZ-TAP selector
  • 30 watts at 8 ohms
  • Taps at 15w, 10w, 5w, 2.5w and 1.25w and 8 ohm setting (raw speaker has 80 watts capacity at 8ohms)
  • 87dB SPL 1w/1m
  • New EZ-BLOCK speaker terminals with 22uF inline supervisory capacitor

 EZ5-10Mk2 EZ Fit 5.25" coaxially loaded 2 Way Speaker with Silk Dome Tweeter. 100V with new Ez-TAP selector, taps at 10w, 5w, 2.5w,and 1.25w and 8 ohm setting, 88dB SPL 1w/1m.
New Ez-BLOCK speaker terminals with 22uF inline supervisory capacitor,



Speaker Size: 8" (203.2mm)
SPL 1W @ 1m: 88dB
Freq Response ± 5dB: 50Hz – 20kHz
Transformer Taps: 15,10, 5, 2.5, 1.25W, 8Ohm
Cold Test: -25º ± 3º C, 16H
Heat Test: 70º ± 3º C, 16H
Connection: 4 Pin Connector for Speaker Line In/Out
6 Jumper Setting for 6 Wattage Selection
Weight: 1.5kg
Mid Range: Paper Cone
Tweeter: 13mm PEI Dome Tweeter
