Product Description

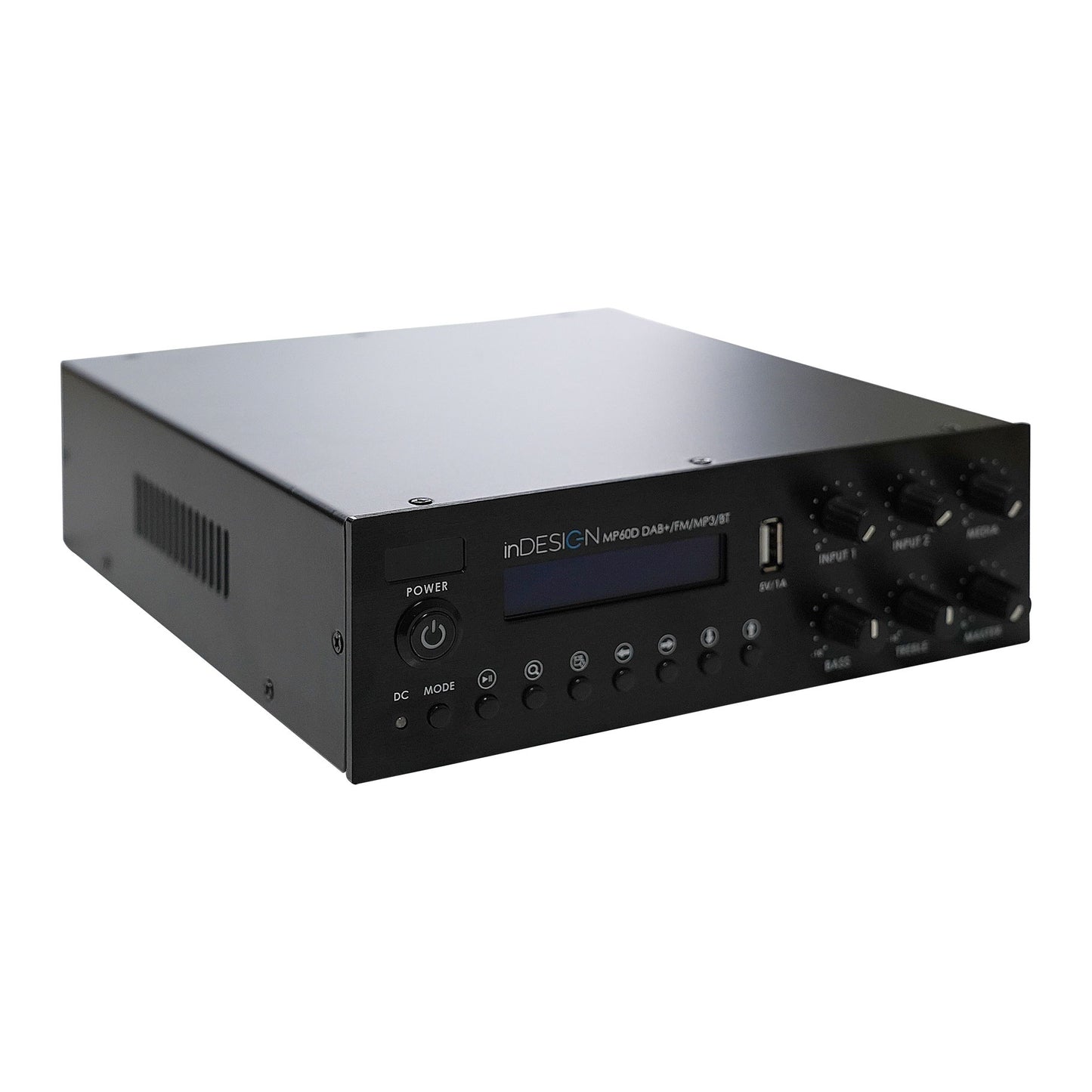

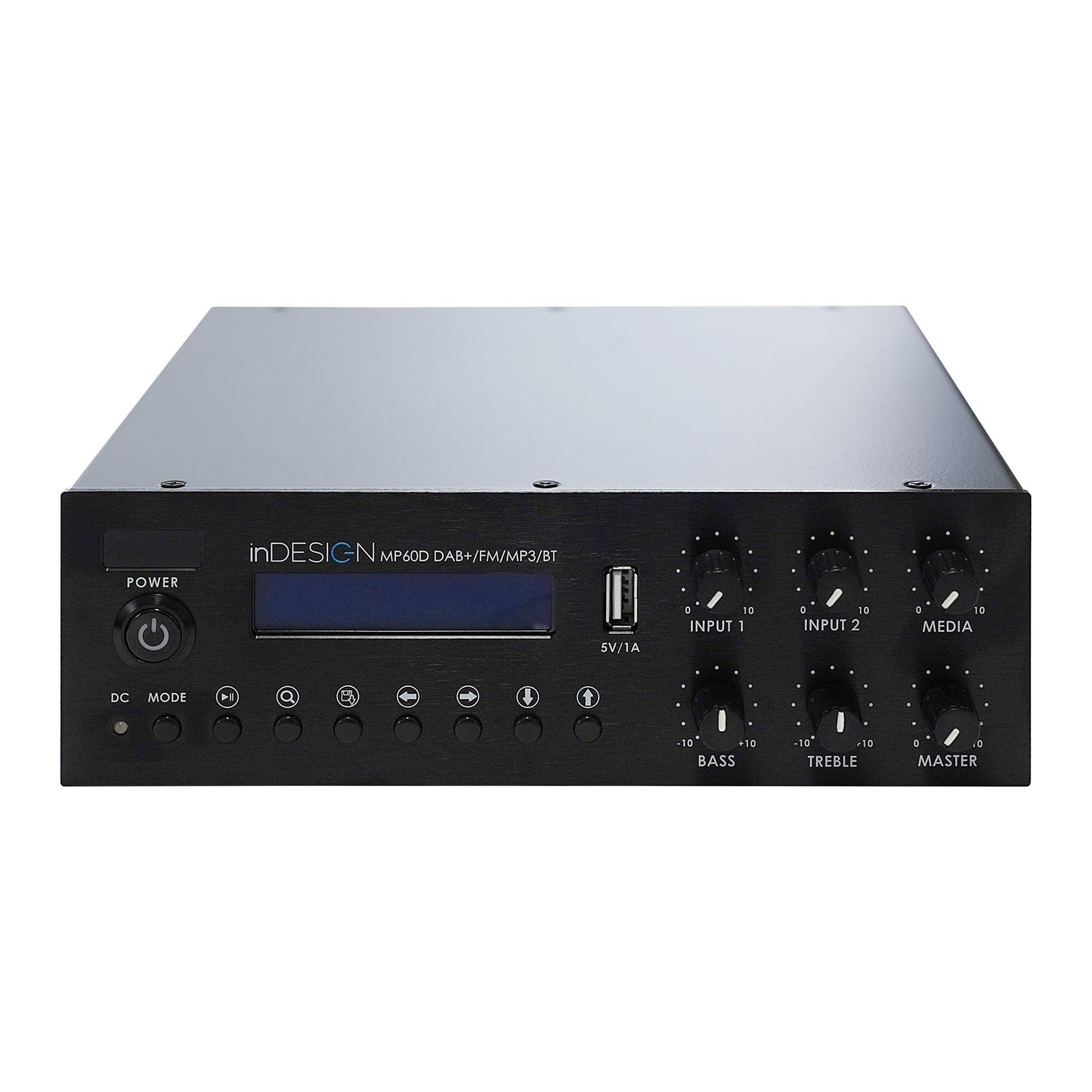

The inDESIGN MP60D - 60 watt, all-in-one mixer amplifier is designed for small to medium installations where multiple playback sources are required. The in-built FM tuner, DAB+ tuner, USB and MP3 player allow easy playback of your favourite radio station, or music stored on a USB drive.

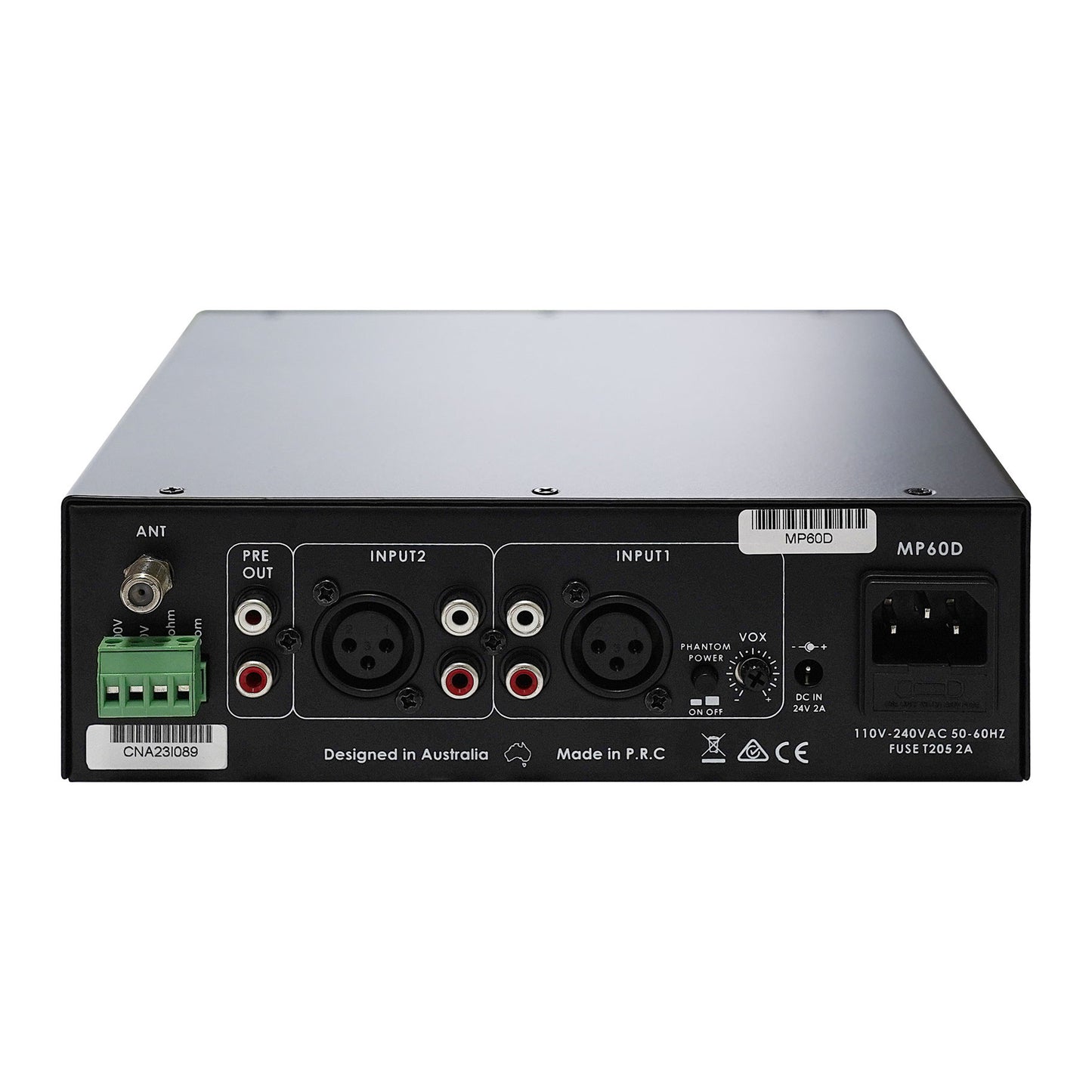

The MP60D delivers 60 watts via 8© or constant voltage 100V and 70V speaker outputs and features 2 Microphone/Line inputs with individual gain control for external audio sources and microphones. A "˜pre-amp out/power amp in' link allows for the mixer audio signal to be sent to an external equaliseror a booster amplifier.
Specifications
- Output power: 60 watts. 8Ω or constant voltage 100v/70v line
- AC power supply: Internal universal power supply (110VAC - 240VAC)
- Output low impedance: 8 ohm
- Hi impedance output: 70V / 161 ohm, 100V / 333 ohm
- Input sensitivity: Microphone 5mV, Line 500mV
- Frequency response: 90Hz - 16KHz, +/- 1dB
- THD (at -3dB rate power): -0.5% @ 1KHz
- Tone control: Bass 100Hz + - 10dB, Treble 10kHz + - 10dB
- Protection: Thermal protected at 75 degrees, short circuit overload
- Size mm: 220 x 66 x 200
- Weight kg (Net): 2.8
- FM radio: 88 - 108MHz. 10 preset stations
- DAB+ frequency range: 168MHz - 240MHz
- Bluetooth: V3.0, V4.0 supported
- USB playback: MP3 & WMA supported
- Line Output level: 600mV
- Mains power: Internal universal power supply (110VAC - 240VAC)
- Power consumption: 60 watts
- Safety: RCM / CE / EMC
- Channel separation: >50dB
- Noise level: <75dB
- DC power supply: 21-25V
- AC fuse: T1AH 250V 5 x 20 mm
