inDESIGN Multimedia Player Wall Plate. USB and Bluetooth playback. 3.5mm and balanced LINE in/out

inDESIGN Multimedia Player Wall Plate. USB and Bluetooth playback. 3.5mm and balanced LINE in/out

Regular price $295
Regular price Sale price $295
Sold out

Stock Levels are Not Indicated Online, Please Contact Us to Confirm Avaliability

View full details

Product Description

Multimedia Player Wall Plate. USB and Bluetooth playback. 3.5mm and balanced LINE in/out

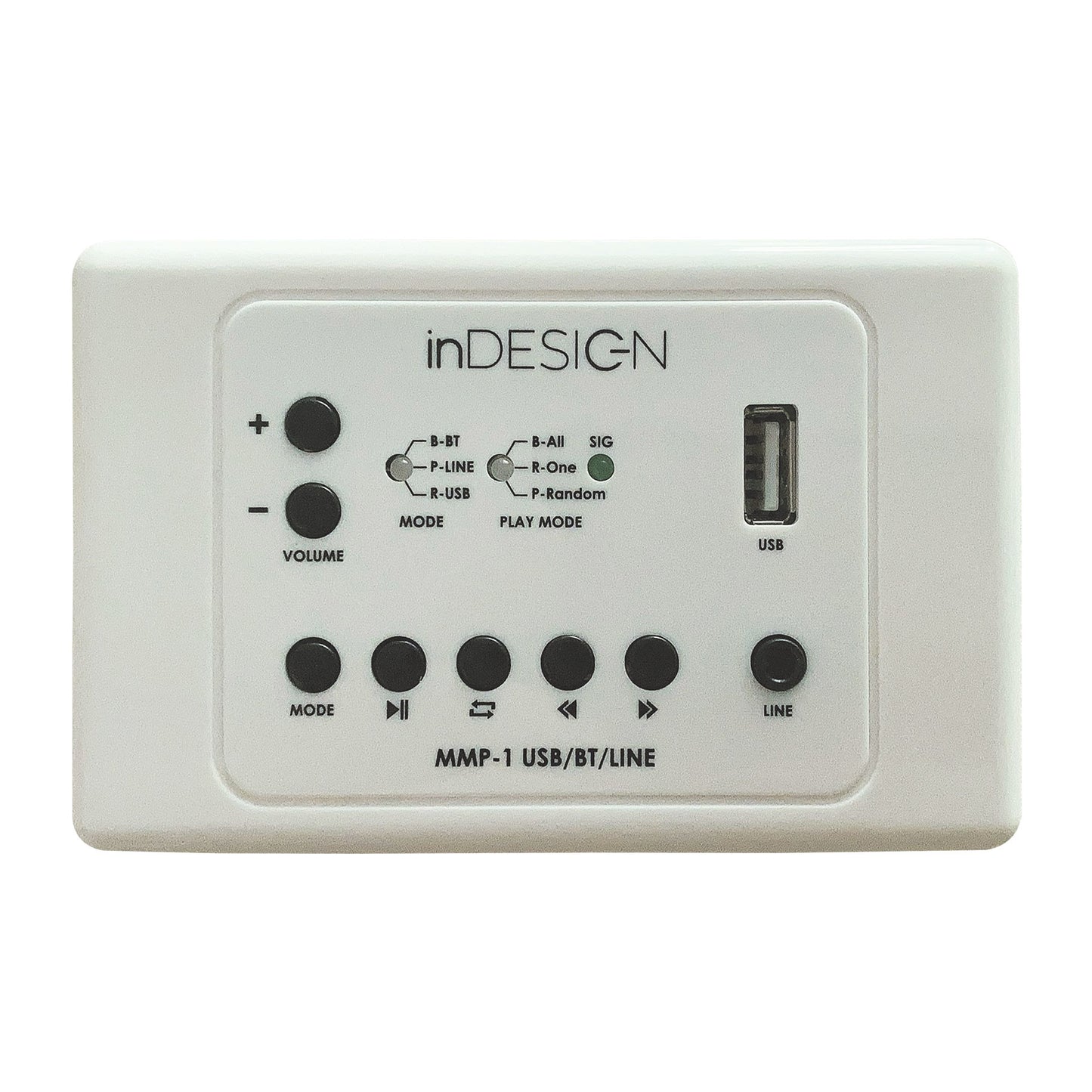

The MMP-1 is a universal remote wall panel featuring three input modes: BT, Line input and USB audio file playback. It can used as a remote input to distributed audio systems, or on its own connected directly to mixers, amplifiers or speaker systems. Users have the choice to connect the MMP-1 locally in an installed space or connect to devices remotely via inexpensive CAT6A twisted pair cabling.

The MMP-1 is the right choice for users who wish to install multiple streaming receivers within close vicinity to one another. With a few simple steps, users are able to rename the BT ID to differentiate installed MMP-1’s throughout buildings such as schools, universities, office spaces and other training facilities.

Specifications
  • Product Mounting: Compatible with Clipsal 2000 series mounting accessories
  • AC Power Supply to PoE : AC 100-240V 50/60Hz
  • MMP-1 Power Supply DC: PoE 24VDC 1.0A
  • BT Revision: BT 4.2
  • BT Range: 20 metres
  • USB Flash Drive: Flash drive capacity MAX 128GB / FAT32 partition
  • USB Player: MP3: Stereo files @ 128k, 192k, 320k and VBR bit rates
  • Front panel line input: TRS 3.5mm unbalanced jack (0.3v level, impedance 10K, internal mono sum)
  • Rear panel line input: JST3 balanced (0.5v level, impedance 10K, mono input)
  • Rear Panel line output: JST3 balanced (0.5v level, impedance 600ohms, mono output)
  • PoE line output: RJ45 balanced (0.5v level, impedance 600ohms, mono output)
  • Product Dimensions HxWxD: 76 x 118 x 32 mm (Clipsal 2000 series style mounting)
  • Product Weight: 100 grams
  • Shipping Dimensions HxWxD: 255x200x70 mm
  • Shipping Weight: 660 grams
  • Included Accessories: PoE power supply , Line in and out cable, RJ45 line cable
