Neutrik NL4FX - Speaker / Loudspeaker Audio Connector, Chuck Type Strain Relief, speakON SPX Series, 4 Contact
Neutrik NL4FX - Speaker / Loudspeaker Audio Connector, Chuck Type Strain Relief, speakON SPX Series, 4 Contact
Regular price
$15
Regular price
Sale price
$15
Unit price
per
Stock Levels are Not Indicated Online, Please Contact Us to Confirm Avaliability
Couldn't load pickup availability
Product Description

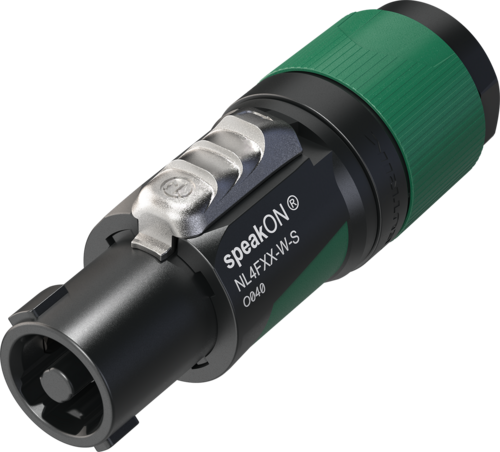

The NL4FX from Neutrik is a 4 pole, chuck type strain relief speakON female cable connector in dark grey bushing. This is a 1 piece strain relief chuck for 7mm to 14.5mm cable outer diameter, easy and extremely precise locking system with "Quick Lock" and improved grip on latch. Colour coding possible and improved screw type termination for highest pull-out force.
- Current rating 40Arms continuous
- Up to 50A audio signal and duty cycle of 50%
- High impact materials, long lasting and reliable
- Only 3 parts, easy to assemble
- Wire size of 12AWG / 10AWG
- Brass (CuZn39Pb3) contacts with 4µm Ag plating
- PBTP 20 % GR shell and polyacetal (POM) strain relief
- PBTP 20% GR insert
- UL94 HB flammability and complies with IEC 68-2-20 solderability
- Temperature range from -30°C to 80°C
