Product Description

ONEStage SPD3:

Description:
The ONEstage SPD3’s big brother the ‘SPD5’ raised the bar for portable power management and distribution and the minaturised SPD3 has paked some of the same great features into a new smaller packed.
Designed from the ground up to meet the stringent requirements of AS/NZS3002:2021 and AS/NZS3105:2017, the SPD3 keeps the original layout of the popular SPD-T1au and adds a robust 2-pole switch with thermal overload protection combined with a black rocker switch.

The recess ‘power present’ led was borrowed from the SPD5 and is located behind a transparent window in the medical grade polycarbonate decal which allowed the designers to use a UV stabilized black rocker switch.
As the only moving part, the lifespan of the rocker switch should be greatly increased, even when exposed to extreme UV conditions.

Audio visual integrators, audio production houses, lighting equipment suppliers, touring applications, stage power, event power, expo solution providers and temporary site power providers will benefit from the ruggedized general-purpose power outlet. The SPD3 is made for high demand applications when a reliable power outlet device requires interfacing with standard AU/NZ ‘Type I’ equipment.

Features:

• 2-Pole combination breaker/switch to meet the stringent requirements of AS/NZS3002:2021 (Shows and Carnivals) and AS/NZS3105:2017 (EPODS). 2-Pole switching is now mandatory.

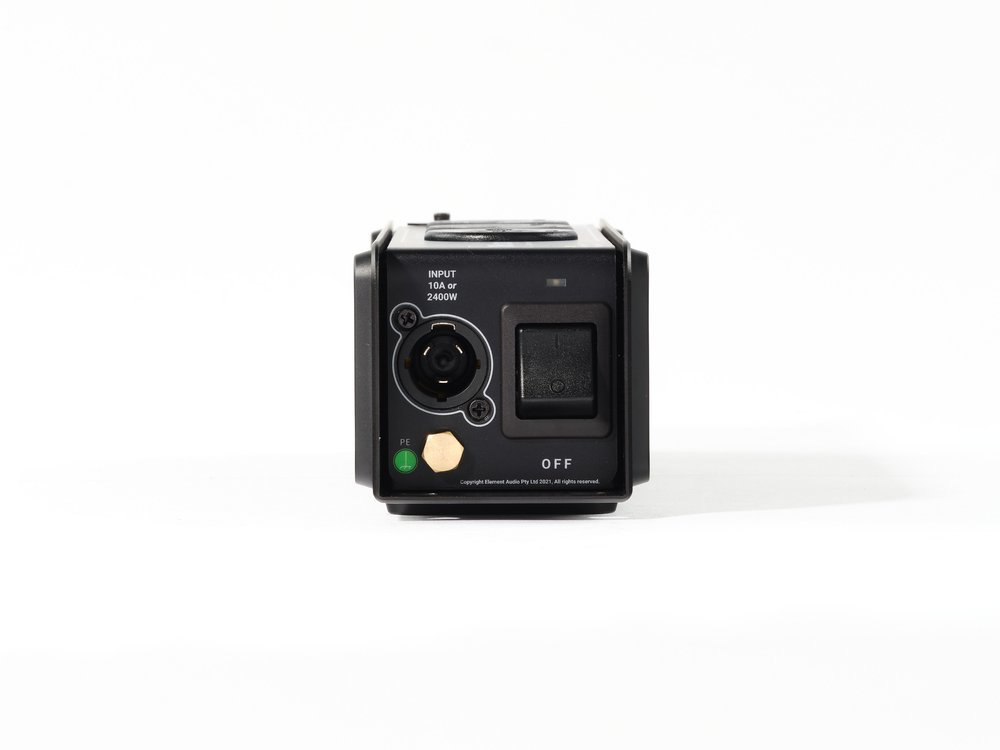

• IP rated Locking input connector capable of 16A at 240VAC

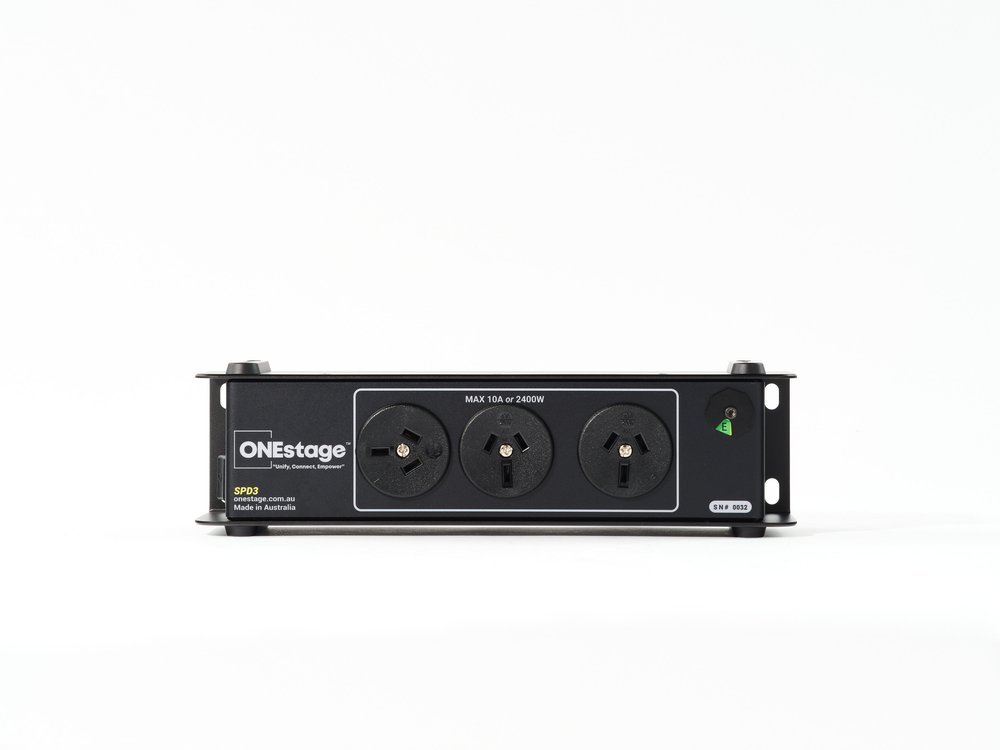

• 3x Standard AU/NZ ‘Type I’ outlets
• Outlet one is rotated 90 degrees to accommodate plug-packs
