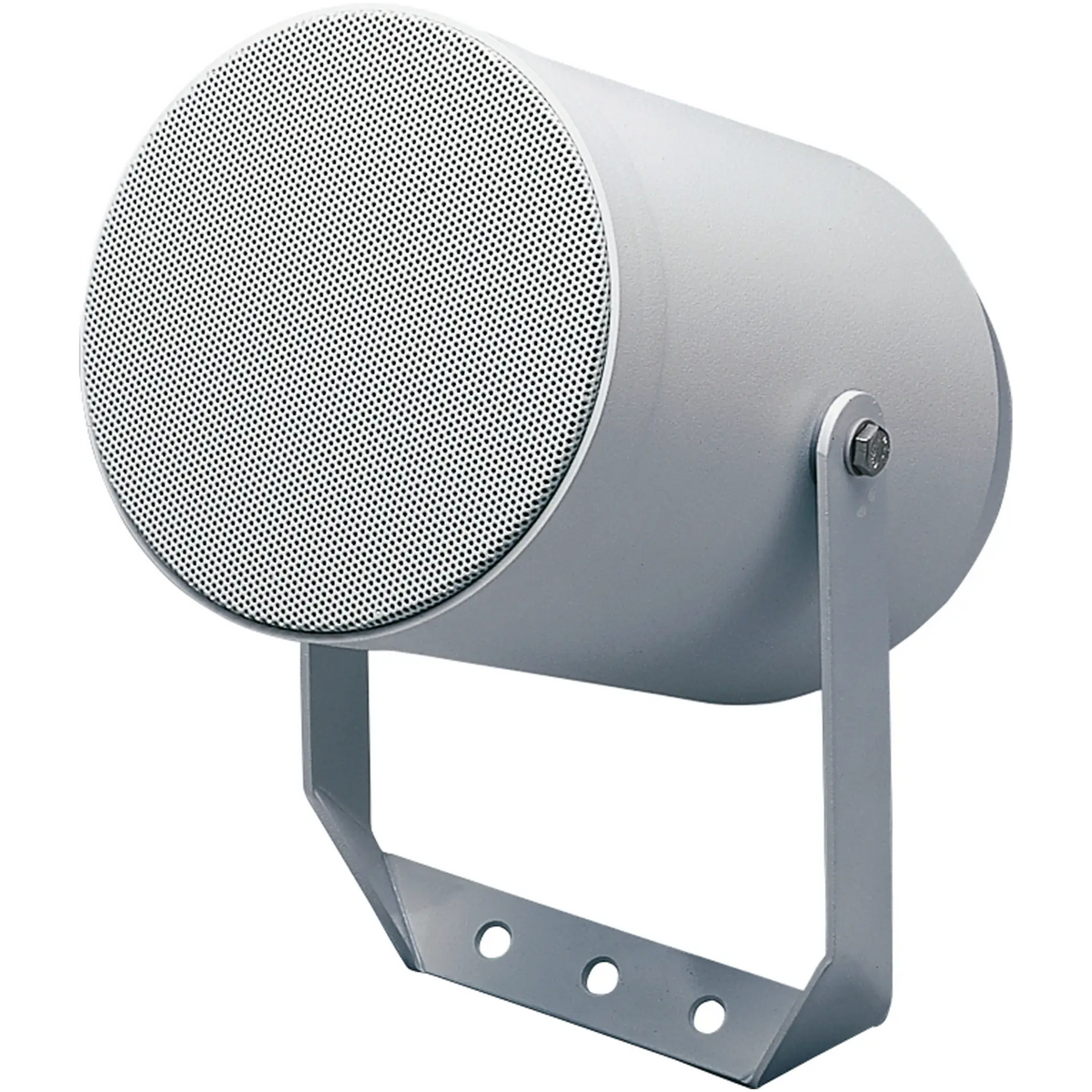

REDBACK 20W 100V IP65 Sound Projector PA Speaker C1520
REDBACK 20W 100V IP65 Sound Projector PA Speaker C1520
Stock Levels are Not Indicated Online, Please Contact Us to Confirm Avaliability
Couldn't load pickup availability
Product Description
This Redback 100V line PA sound projector is made from strong UV stabilised ABS plastic with a perforated metal grill. It is fitted with a PA transformer with multi-tap selections and is designed for use in 100V line distributed systems. Sound projectors offer a wide dynamic range making them ideal for both paging and background music applications. Typical applications include sport stadiums, train station platforms, shopping centres, aquatic arenas, etc.
Features:
- Tough UV stabilised high impact ABS construction
- Durable powdercoated aluminium mounting bracket
- Stainless steel grille & fixings
- Exceptional music and speech reproduction
- Selectable power taps
- Uses a high efficiency driver and line transformer
- Suitable for indoor or outdoor use
- Includes 5-core cable for easy power tap selection
- Fitted with supervisory capacitor for line monitoring.
Specifications:
Rated power: 20W
Tappings 100V line: 20/10/5/2.5W
Transformer Impedance: 500/1k/2k/4k Ohms 100V
Tappings 70.7V Line: 10/5/2.5/1.25W
Driver Impedance: 8 Ohms
Effective Frequency range: 110-18,000 Hz (BSEN60268-5)
S.P.L @1m, 1W, dB, Test Signal Bandwidth 100Hz-10kHz: 91
S.P.L @ Full Power, Octave Bandwidth: 104 dB
Acoustic Power (dB-PWL @1W) 1k/2kHz): 89/90 dB
Dispersion at 1k/2k Hz: 180/120°
Directivity Axial Q factor, 1k/2kHz: 2.6/5.6
IP Rating: 66
Max/Min Ambient Temp: 70°/-25°
Dimensions, front & depth: 138Ø x 204D mm
Net Weight: 1.6kg
Colour/Finish: White
Material: ABS Plastic with UV inhibitor and stainless steel hardware
Mounting: Aluminium U bracket
