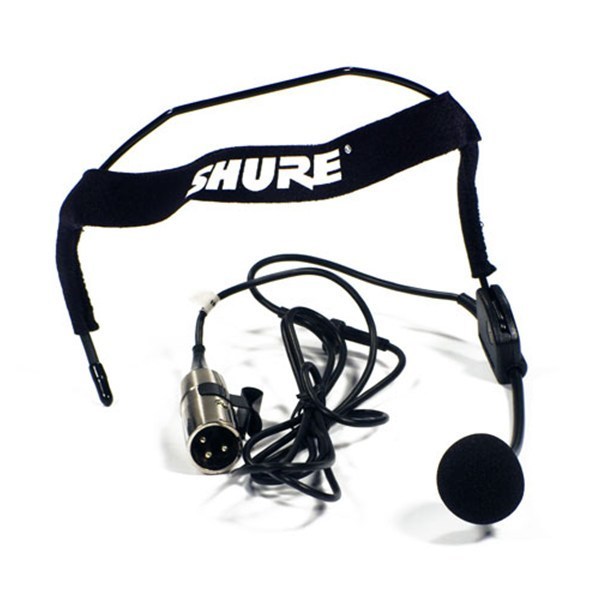

Shure WH20XLR Head-worn Mic Cardioid Dynamic XLR Connector

Shure WH20XLR Head-worn Mic Cardioid Dynamic XLR Connector

Regular price $180
Regular price Sale price $180
Sold out

Product Description

The Shure WH20XLR is a rugged, lightweight, dynamic headset microphone that provides high-quality voice pickup. It fits securely for active microphone users, such as aerobics instructors and musicians, with low visibility for stage appearances.

The cardioid (unidirectional) pickup pattern provides greater gain-before-feedback and isolation from ambient noise and other unwanted sound sources. A carefully shaped frequency response includes a voice-frequency presence peak and a low-frequency roll-off to compensate for the proximity effect inherent in cardioid mics during close-talk operation.


Includes 3-pin male XLR connector w/ detachable belt clip
Lightweight wireframe and elastic headband adjust for a secure, comfortable fit
Extra-strong, small-diameter attached microphone cable resists breakage
Collapsible microphone boom for easy storage and transportation
Smooth, natural frequency response comparable to high-quality dynamic hand-held vocal microphones
High input clipping level eliminates overload distortion
Reliable at temperature and humidity extremes
Supplied foam windscreen and clothing clip


Capsule Type: Dynamic, Close-Talking
Frequency Response (at 8 mm): 50 to 15,000 Hz
Polar Pattern: Cardioid (unidirectional) response, uniform with frequency, symmetrical about axis
Impedance: Microphone rating impedance is 150 ohms (200 ohms actual)
Output Level (close talked (at 12.5 mm (1/2 inch)) at 1,000 Hz): Open Circuit Voltage: -67.0 db/Pa (0.45 mV), (1 Pa = 94 dB SPL)
Hum Sensitivity: 38.4 dB equivalent SPL in a 1 millioersted field
Polarity: Positive sound pressure on diaphragm produces positive voltage on pin 2 with respect to pin 3 of microphone output XLR connector
Cable: Attached 1.22 m (4 ft), small-diameter, shielded, PVC-jacketed, two-conductor
Cable Connector: Three-pin XLR with detachable belt clip
Construction: Black thermoplastic housing; stainless steel grille; black TEFLON®-coated stainless steel wireframe; flexible plastic-clad monel gooseneck; rubber/nylon elastic headband
Net Weight (including connector): 98g (3.5 oz)
Environmental Conditions
Operating Temperatures: -18 to 60 degrees C (0 to 140 degrees F)
Storage Temperatures: -29 to 74 degreesC (-20 to 165 degrees F)
Humidity: 0 to 95%
