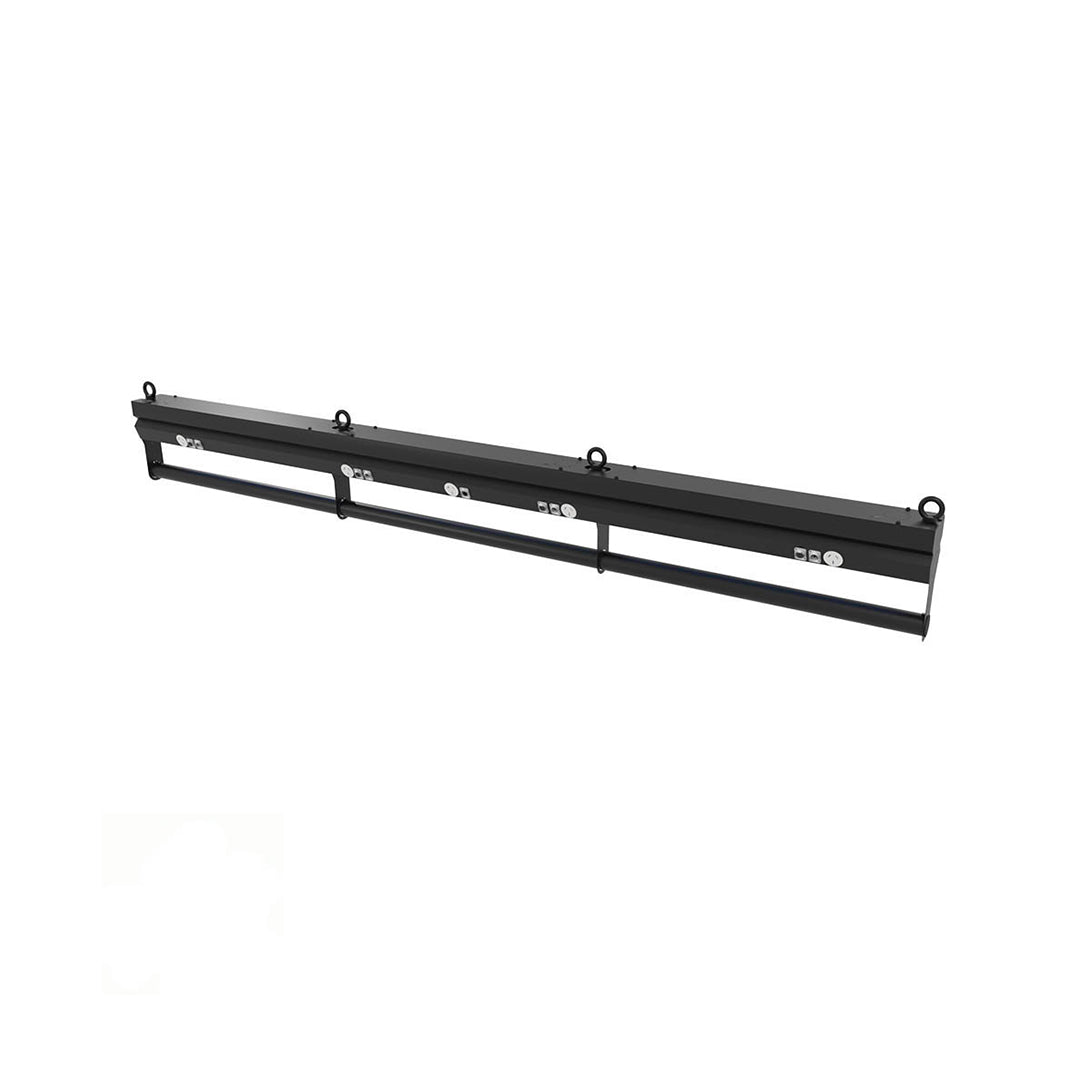

Stage 1 LX Bar ( Ceiling Lighting Bar )

Stage 1 LX Bar ( Ceiling Lighting Bar )

Stock Levels are Not Indicated Online, Please Contact Us to Confirm Avaliability

$2,499
$2,499
Sold out
View full details

Product Description

Pro Sound & Lighting presents the Stage 1 Lighting Bar.

Proudly designed, engineered, and built in Australia to Australasian Standards, the Stage 1 achieves the strength and flexibility required to adapt into any space thanks to its impressive distributed weight loading and advanced configurable patch panel system. This durable lighting bar includes features such as interlocking modules without any compromise of the load bar rating, quick assembly, optional LED internal lighting, and is also available in a clean white finish.


FEATURES

Material: Aluminium
Module Lengths: 2.4m
Barrel Size: 48.4mm OD
Distribution Loading: 55Kg/M
Point Loading: 130kg
Power Outlets: Standard 10A, or optional 20A
DMX input/output: 3/5 Pin XLR, Art-NET

SPECIFICATIONS
Depth: 150mm
Height: 270mm
Length + Weight:
– 2.4m @ kg
Colour: Black Low Sheen as standard

OPTIONS

Multicore Inputs: 19 Pin Socapex, Hardwired Optional
Power Outlets: Standard 10A, or optional 20A available.
DMX/Data input/output: 3/5 Pin XLR, Art-NET, Internal
LED: Optional Colour and Controllable LED
Colours: Black Low Sheen, Clean White / other colours and finishes available on request.

– The LX Bar is designed for use as a lifting beam to AS4991:2004, Classification C2

– The LX Bar complies with electrical safety requirements AS3100:2002
